Conduit & Fittings

Steel Pipe & Fittings

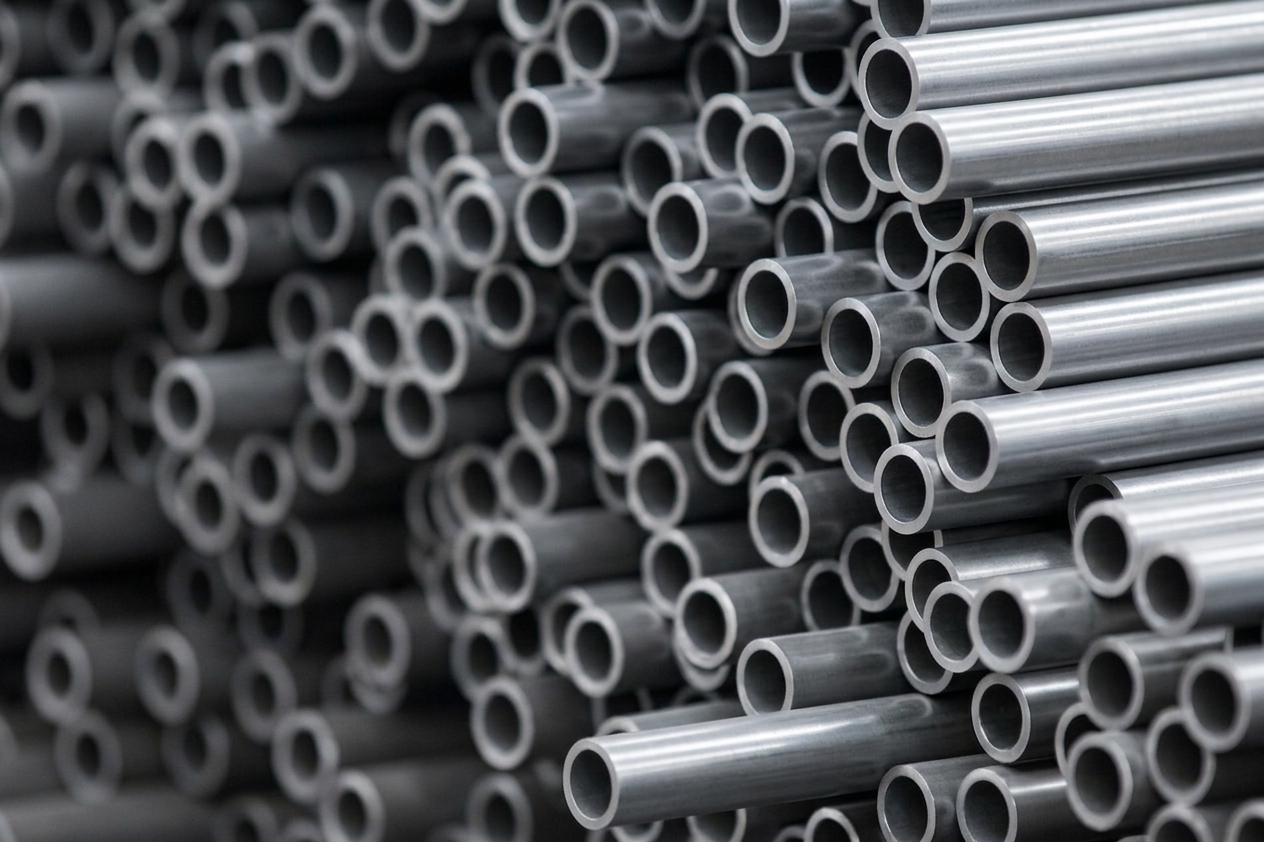

Steel pipe provides the structural integrity required for utility casing, road and railroad crossings, bridge attachments, and industrial conduit applications where plastic alternatives can't handle the loading conditions. Galloway stocks steel pipe in both foreign and domestic sourcing across the full range of schedules from lightweight Schedule 5 through heavy-wall Schedule 160 and Extra Heavy (XH), in nominal sizes from 1/8" through 48". Galloway carries steel pipe from suppliers including Ironhed and Prime Conduit.

Speak to a specialist call
Galloway_Pipe_Steel
Reels in the Yard Greenfield OH SML

Features

The specifications below cover the two choices that define a steel pipe order — schedule for loading and sourcing for Buy America compliance — plus the casing fittings that complete a sealed crossing.

  • check_circle
    check_circle

    Full schedule range:

    Schedule 5, 10, 20, 30, 40/Standard, 60, 80/Extra Heavy (XH), 100, 120, 140, and 160

  • check_circle
    check_circle

    Nominal sizes from 1/8" (0.405" O.D.) through 48"

    Larger sizes available on request

  • check_circle
    check_circle

    Domestic and foreign sourcing:

    Domestic steel available for Buy America / BABA compliant projects

  • check_circle
    check_circle

    Wall thickness:

    Range from 0.035" (Schedule 5, 1/8" pipe) through 2.343" (Schedule 160, 24" pipe)

  • check_circle
    check_circle

    Weight range:

    From 0.14 lbs/ft (1/8" Sch 5) to 542+ lbs/ft (24" Sch 160)

  • check_circle
    check_circle

    H-20 & E-80 Compliant:

    Meets H-20 highway and Cooper E-80 railroad loading requirements in appropriate schedules

  • check_circle
    check_circle

    Available with steel fittings:

    Elbows, reducers, end caps, casing spacers, end seals, vents, and test plugs

Technical Specifications

The following represents our standard stocked range. Steel pipe is available in hundreds of size/schedule combinations—the tables below show representative data. Need a specific size, schedule, or wall thickness? Give us a call. We'll figure it out.

Material

Carbon steel pipe, foreign and domestic

Small Diameter

1/8" to 3-1/2" (0.405" to 4.000" O.D.)—Schedules 5, 10, 40/STD, 80/XH, 160

Medium Diameter

4" to 8" (4.500" to 8.625" O.D.)—full schedule range available Sch 5 through 160

Large Diameter

10" to 24" (10.750" to 24.000" O.D.)—Schedules 5 through 160 and XH

Extra Large Diameter

26" to 48" and larger—selected schedules including STD and XH

Standards

ASTM A53, ASTM A500 (as applicable by manufacturer)

Domestic Sourcing

Available for Buy America / BABA compliant projects (BEAD, RDOF, federal broadband funding)

Fittings

Steel elbows (45°, 90°), reducers, end caps, casing spacers, end seals, vents, test plugs



Need steel pipe for your next build?

We stock steel pipe at Galloway locations across common sizes and schedules. For large-diameter, heavy-wall, or specialized requirements, we source from domestic and foreign mills to match your timeline and budget. If you need help navigating Buy America requirements or selecting the right schedule for your loading conditions, we'll help you specify correctly the first time.

When you work with Galloway, you get a team that understands your business and answers your call. We have your back.
