Accessories & Supplies

Tracer Wire

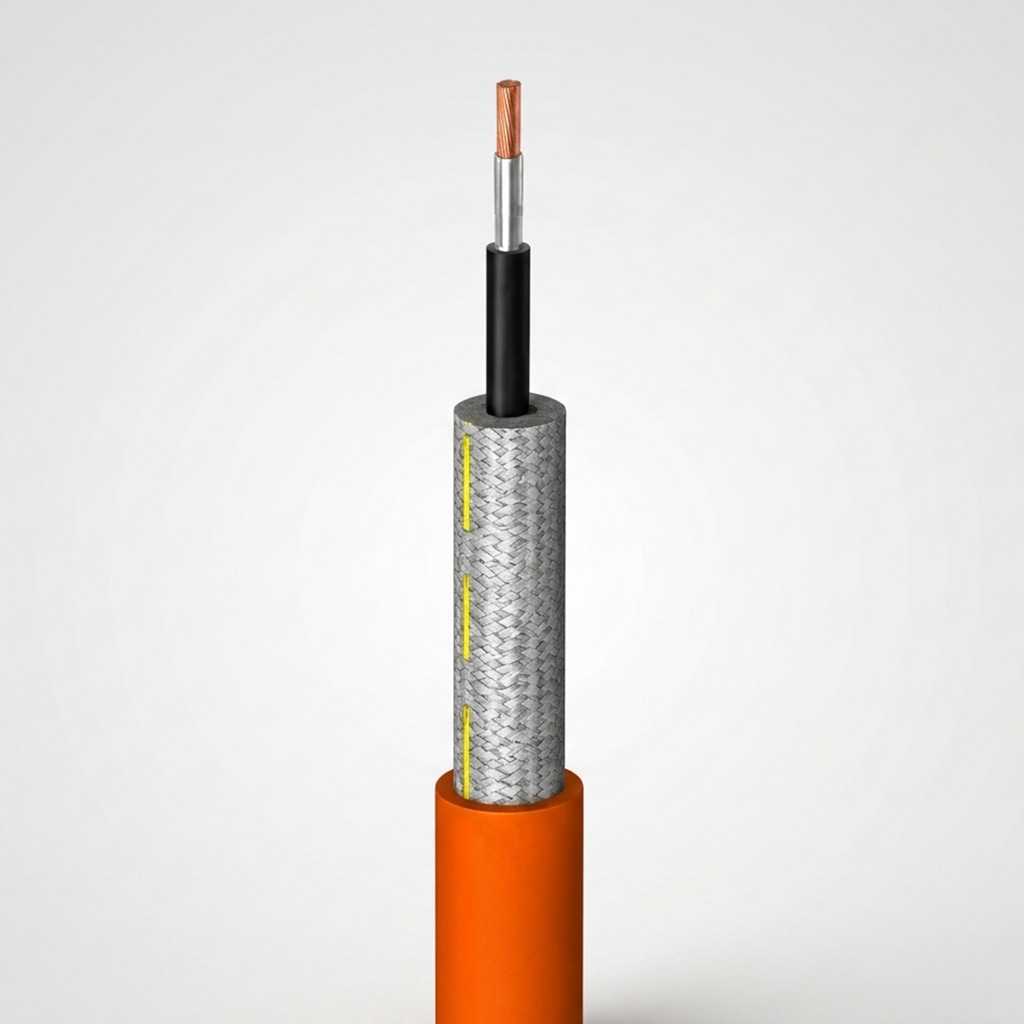

Insulated locating wire for tracing and identifying buried non-metallic pipes, conduit, and cables after installation. Galloway stocks tracer wire from Pro-Line Safety Products (PRO-TRACE® brand) and Kris-Tech Wire at regional locations across the US. Available in 10, 12, and 14 AWG in copper and copper-clad steel configurations.

Speak to a specialist call
Galloway_Accessories_Tracer_Wire
Reels in the Yard Greenfield OH SML

Pro-line safety Pro-Trace® specifications

Product

Conductor

Break Load vs Copper

Insulation

Voltage

Application

Copper PE45

Solid copper

Baseline

45 mil HDPE

600V

General open trench and conduit

HF-CCS PE30

High-Flex CCS (21% IACS)

43% higher

30 mil HDPE

30V

Open trench, plow-in, blow-in

HF-CCS PE45

High-Flex CCS (21% IACS)

43% higher

45 mil HDPE

600V

Open trench, higher voltage systems

HDD-CCS PE45

Extra High Strength CCS

~700% (7x)

45 mil HDPE

600V

Directional drilling, pipe bursting

CCS = copper-clad steel, AISI 1006 low carbon steel core metallurgically bonded with copper cladding. 12 AWG HF-CCS PE30 min break load: 282 lbs / 55,000 psi. All products meet ASTM B910, B170, D1248. RoHS compliant, direct burial rated.

Technical Specifications

Specification Standard Stocked Range Standard Stocked Range
 Standard Stocked Range Standard Stocked Range

Material

High-Density Polyethylene (HDPE)







Available Sizes

3/4” through 6” diameter







SDR Options

SDR 7, 9, 11, 13.5, 15.5 (controlled by outside diameter and minimum wall thickness)







SIDR Options

SIDR 9, 11.5 (controlled by inside diameter and minimum wall thickness)







Schedule Options

Schedule 40 and Schedule 80







Standards Compliance

ASTM D3035, ASTM D2239, ASTM F2160







Listings

RUS Listed for telecommunications applications







Pull Tape

Available empty or with factory pre-installed pull tape (1,250 lb typical tensile strength)







Standard Colors

Orange, blue, green, black, white, red, brown, gray, terra cotta, yellow. Custom colors and stripe combinations available.







Reel Sizes

66”, 84”, 96”, 102”, 114” diameter steel reels







Conduit Markings

Permanent marking includes material type, applicable standards, production information, and sequential foot/meter markings. Custom marking available.







Kris-Tech Tracer wire system

  • bookmark_check
    Copper and copper-clad steel tracer wire, in 18–4 AWG gauges
  • bookmark_check
    30 mil (30V) and 45 mil (600V) HMWPE/HDPE insulation options
  • bookmark_check
    APWA color-coded jackets:
    Yellow (gas), blue (water), green (sewer), orange (telecom), red (electric)
  • bookmark_check
    Secure connectors:
    Sealed, corrosion-proof, waterproof connections for 18–8 AWG
  • bookmark_check
    Magnesium ground rods
    Pencil tip for straight installation and recessed connection point
  • bookmark_check
    Underground marking tape:
    Detectable (aluminum core, 3-part laminated) and non-detectable (4 mm, 6 mm super-stretch, 8 mm woven reinforced)
  • bookmark_check
    Access points, test stations, and hydrant access points for above-ground termination
  • bookmark_check
    Kris-Tech products made in USA
Galloway_Accessories_Kris-Tech2

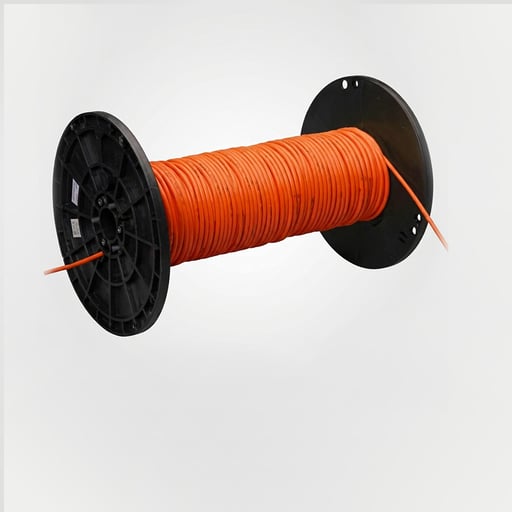

Trace-Safe® Water blocking tracer wire

  • bookmark_check
    19 AWG solid copper core
    With polyolefin insulation, water blocking yarns, and HDPE outer jacket
  • bookmark_check
    Water blocking design
    Extends tracer wire life by preventing moisture migration along conductor
  • bookmark_check
    Available in 10, 12, and 14 AWG stock sizes from Galloway
Galloway_Accessories_Trace-Safe2

Brands we carry

Need tracer wire?

Galloway stocks tracer wire and locating accessories across our distribution network. Whether you have defined specifications or need assistance selecting the right conductor type, gauge, and insulation for your installation method and soil conditions, our team can help ensure the right product is specified and delivered.

Not sure exactly what you need? Call and let’s talk about what you’re building — we’ll help work it out.
