Fiber Blowing Installation
Fiber blowing machines for precision cable placement through microduct and standard conduit systems—using controlled air pressure and mechanical feed to install fiber optic cable over distances that traditional pulling methods cannot achieve. Galloway stocks fiber blowing equipment from Plumett (Plumettaz S.A.) and Condux International at regional locations across the US.
Technical Specifications (Manufacturer Data)
High-Fatigue Aircraft Strand steel cable with UV-resistant plastic coating. Copper tabs on tail end for reinforcement. Available in single, double, triple, and quad weave configurations.
| Manufacturer / Model | Cable Range | Duct Range | Speed | Wt | Drive | Application |
|---|---|---|---|---|---|---|
| Plumett MiniJet™ | Ø 4–16 mm | OD 7–42 mm | — | — | Pneumatic / Hydraulic | Multi-cable, micro-cable, microduct (4-in-1) |
| Plumett UltimaZ™ E | Ø 0.8–4.0 mm | OD 3–12 mm | 656 ft/min | — | Electric (Li battery) | FTTH micro-cable, indoor/outdoor |

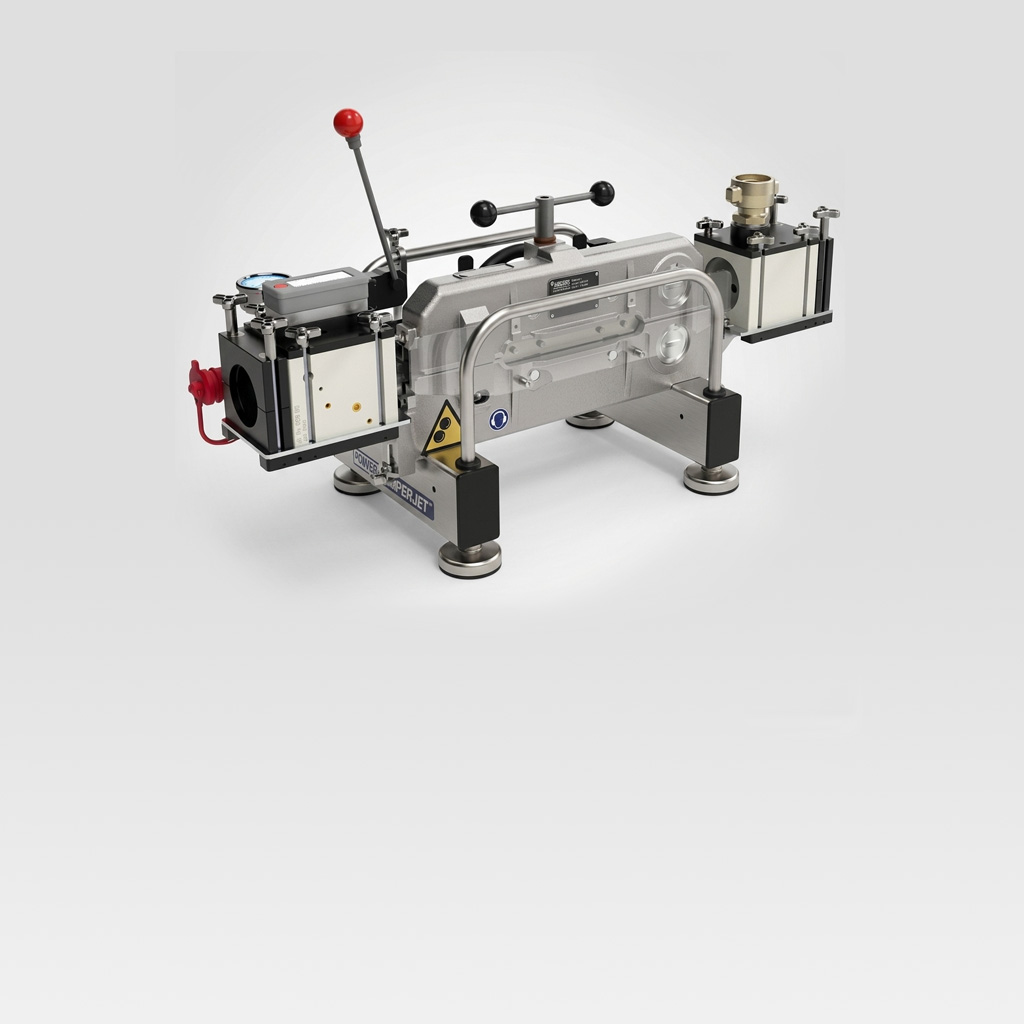

| Plumett SuperJet™ | Ø 9–32 mm | OD 20–63 mm | 300 FPM | 85 lbs | Pneumatic / Hydraulic | Telecom trunk, coaxial, multiduct |
| Plumett CableJet™ | Ø 9–18 mm | OD 20–63 mm | — | 66 lbs | Pneumatic | Legacy OSP cable jetting |
| Condux Gulfstream™ 400 | 0.23"–1.13" | 1/2"–2" + µduct 10–18 mm | 300 FPM | 55 lbs | Hydraulic + Pneumatic | Long-haul and FTTH; patented traction control |
| Condux Mini-Blower/Pusher | 0.23"–0.5" | µduct 10–18 mm / 0.5"–1.5" | — | Handheld | Drill-powered | Last-mile FTTH; cordless/corded/pneumatic drill |
Sources: plumettaz.com product specs; condux.com Gulfstream 400 and Mini-Blower/Pusher product pages. All Plumett machines equipped with distance and speed counter. Condux Gulfstream 400 dims: 23.6” x 13.9” x 13.1”. MiniJet upgradable to IntelliJet™ intelligent monitoring. Condux based in Mankato, MN.
Brands we carry
You may also need
HDPE Microduct
5–27mm microduct — the jetting pathway these machines blow fiber into.
Fiber Optic Cable
Reduced-diameter micro and blown fiber cable — the cable jetted through the duct.
HDPE Couplings & Fittings
Air-tight push-fit couplers — a sealed, coupled duct run is what makes a long blow possible.
Need Fiber Blowing Equipment?
Galloway stocks fiber blowing machines across our distribution network. Whether you have defined specifications or need assistance selecting the right machine for your cable diameter, duct size, and installation distance, our team can help ensure the right equipment is specified and delivered.
