Accessories & Supplies

Pull Tape

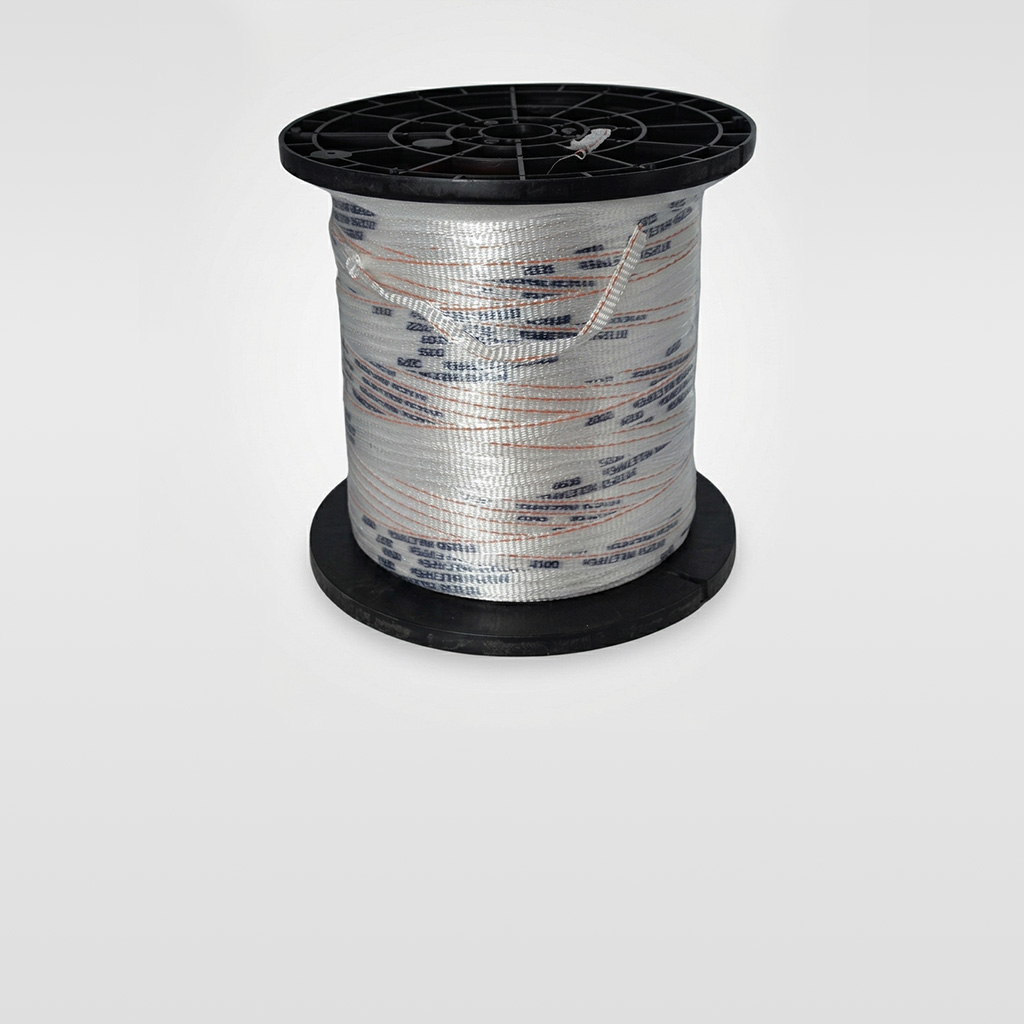

Flat woven polyester pull tape for installing fiber optic, copper, and coaxial cables through underground conduit. Galloway stocks Neptco MULETAPE® and Dura-Line pull tape at regional locations across the US in strengths from 200 to 6,000 lbs.

MULETAPE replaces three traditional products—conduit measuring tape, nylon string, and pulling rope—in a single low-stretch, pre-lubricated tape with sequential footage markings. Available in standard polyester and detectable configurations.

Speak to a specialist call
Galloway_Accessories_Pull_Tape
Reels in the Yard Greenfield OH SML

Features

The specs below reflect how the tape is rated: strength quoted three ways — straight pull, knotted loop, and field-tied knot — plus the footage markings and detectable option that let one tape measure and be located, not just pull.

  • check_circle
    check_circle

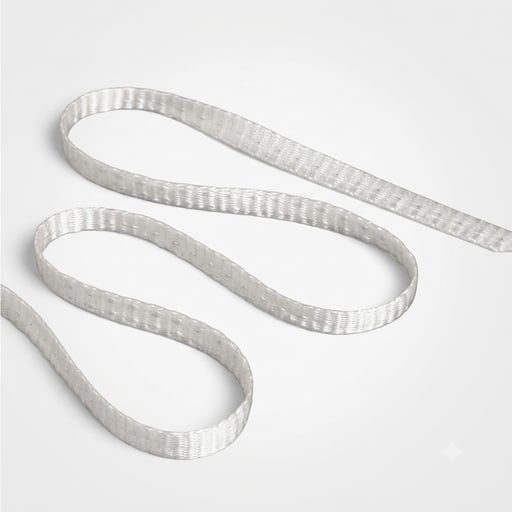

    Flat woven polyester construction

    Low elongation prevents snap-back under high tension

  • check_circle
    check_circle

    Pre-lubricated

    Reduced friction during conduit threading

  • check_circle
    check_circle

    Sequential footage

    Or meter markings, printed along full length

  • check_circle
    check_circle

    Strengths from 200 to 6,000 lbs

    With bowline and mule-knot ratings

  • check_circle
    check_circle

    Standard / Detectable

    Standard and detectable versions available

  • check_circle
    check_circle

    ASTM and NEMA compliant

    For pulling strength, tensile performance, and dimensional accuracy

  • ink_highlighter
    ink_highlighter

    Made in the USA

    Full BABA compliant

Neptco Muletape Specifications (Manufacturer Data)

Tensile (lbs)

Bowline (lbs)

Mule-Knot (lbs)

Min Reel (ft)

Max Reel (ft)

Width

Material

200

110

150

3,000

100,000

1/8"

Polyester

400

190

300

3,000

100,000

1/4"

Polyester

600

360

468

3,000

100,000

3/8"

Polyester

900

480

770

3,000

100,000

1/2"

Polyester

1,250

760

900

3,000

70,000

1/2"

Polyester

1,800

830

1,400

3,000

50,000

5/8"

Polyester

2,500

1,300

1,800

3,000

25,000

3/4"

Polyester

6,000

3,080

5,000

1,000

3,000

3/4"

Polyester

Neptco/Chase Corp product data. Additional sizes (1,800 lbs 3/8”, 3,300, 4,000 lbs) also available. Tensile = straight pull; Bowline = knotted loop; Mule-Knot = field termination.

Technical Specifications

Specification Standard Stocked Range Standard Stocked Range
 Standard Stocked Range Standard Stocked Range

Material

High-Density Polyethylene (HDPE)







Available Sizes

3/4” through 6” diameter







SDR Options

SDR 7, 9, 11, 13.5, 15.5 (controlled by outside diameter and minimum wall thickness)







SIDR Options

SIDR 9, 11.5 (controlled by inside diameter and minimum wall thickness)







Schedule Options

Schedule 40 and Schedule 80







Standards Compliance

ASTM D3035, ASTM D2239, ASTM F2160







Listings

RUS Listed for telecommunications applications







Pull Tape

Available empty or with factory pre-installed pull tape (1,250 lb typical tensile strength)







Standard Colors

Orange, blue, green, black, white, red, brown, gray, terra cotta, yellow. Custom colors and stripe combinations available.







Reel Sizes

66”, 84”, 96”, 102”, 114” diameter steel reels







Conduit Markings

Permanent marking includes material type, applicable standards, production information, and sequential foot/meter markings. Custom marking available.







You may also need

Galloway_tools_pull_grips
inbox
Installation Tools

Pulling & Prep – Cable & Fiber

Pulling grips, swivels, and lubricant — the rest of the kit that pulls cable in behind the tape.

Galloway_Single_Mode_OS2_Fiber
inbox
Fiber Optic Cable & Connectivity

Fiber Optic Cable

Loose-tube OSP, drop, and coax — the cable the tape threads the conduit to receive.

smoothwall coduit Large
inbox
Conduit & Fittings

HDPE Smoothwall Conduit

Continuous-reel HDPE duct — the pathway the tape threads ahead of the pull.

Brands we carry

Need pull tape?

Galloway stocks pull tape across our distribution network. Whether you need a specific strength and reel length or assistance selecting the right tape for your conduit run, our team can help ensure the right product is specified and delivered.
