Fiber Optic Cable & Connectivity

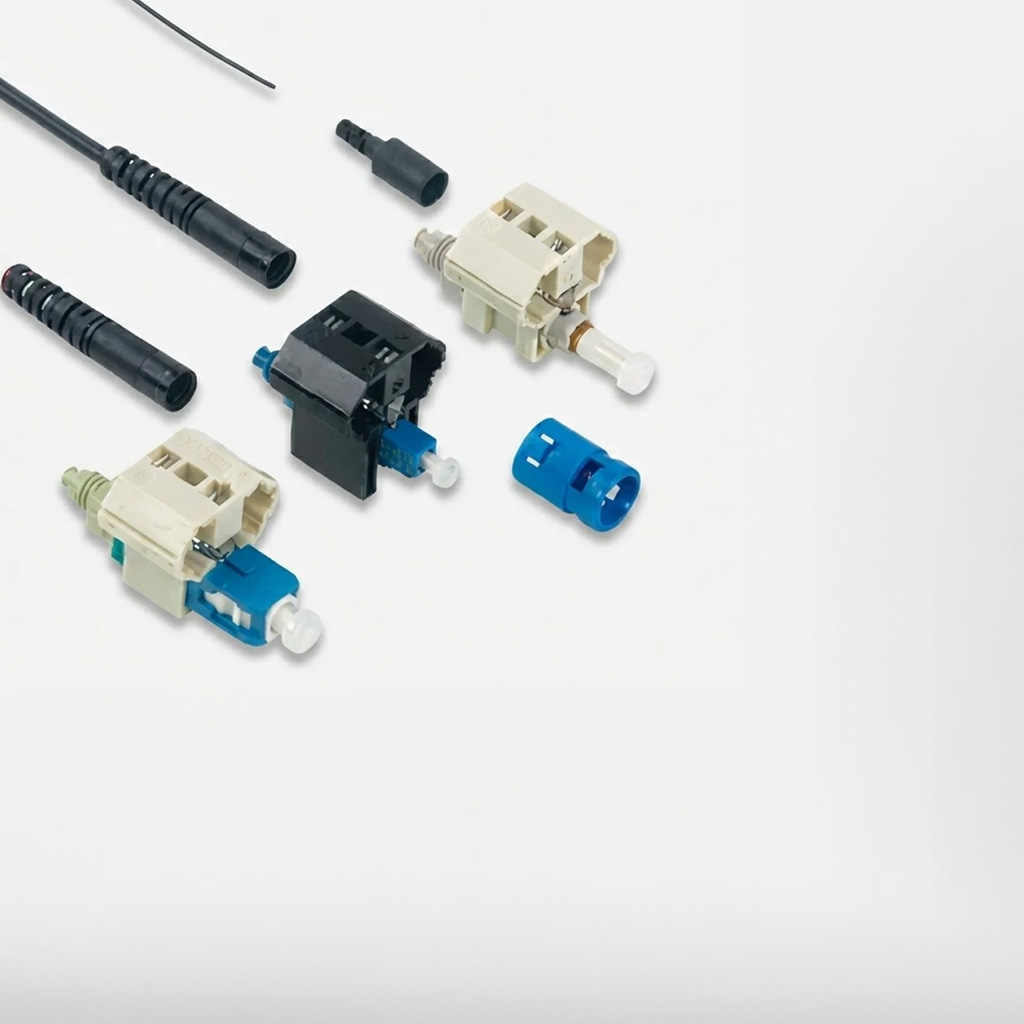

Fiber Connectivity & Passive Components

Connectors, adapters, splitters, and patch panels are the passive interface points where fiber is accessed, tested, routed, and distributed throughout the network. Low-quality connectivity hardware introduces insertion loss and reflectance at every joint - problems that are expensive to find and fix after commissioning.

Galloway stocks connectivity hardware and passive components from CommScope and AFL at regional locations. These are the products specified on major FTTX deployments, available off the shelf for fast delivery to your project.

Speak to a specialist call
Galloway_Fiber_Connectivity_Passives_S
Reels in the Yard Greenfield OH SML

Loose Tube - OSP Backbone, Feeder & Distribution

Fujikura Ribbon Fiber Splicing kit 6-22-26-8090 Medium

Color-coded loose buffer tubes

Protect individual fibers from mechanical and environmental stress; stranded designs carry 6 to 24 tubes, central-tube designs a single tube

More information chevron_right

Single-mode OS2 (G.652.D) standard, G.657.A1 for tighter bend routing;

OFS AllWave ZWP fiber gives zero water peak across the full wavelength spectrum

Gel-free DryBlock construction (OFS)

Reduces splice prep time by up to 80% vs. gel-filled designs

Jacket and construction options span single jacket (SJ) through double-armored (DA)

Corrugated steel tape armor for direct-burial without conduit or in rodent-prone areas; OFS Fortex DT Light Armor is gel-free and mass-fusion-ready

All-dielectric ADSS variant for aerial self-support

No messenger wire, no grounding on energized power lines; aramid strength members support spans to ~1,500 m depending on loading; OFS PowerGuide DT double-jacket eliminates all gels

Fiber counts from 12 to 864

Standard reel lengths 1 km and 2 km; multimode OM3/OM4 available for campus and data center interconnect

Loose Tube - OSP Backbone, Feeder & Distribution

Fujikura Ribbon Fiber Splicing kit 6-22-26-8090 Medium

noimage-3

Color-coded loose buffer tubes

Color-coded loose buffer tubes protect individual fibers from mechanical and environmental stress; stranded designs carry 6 to 24 tubes, central-tube designs a single tube

Single-mode OS2 (G.652.D)

Single-mode OS2 (G.652.D) standard, G.657.A1 for tighter bend routing; OFS AllWave ZWP fiber gives zero water peak across the full wavelength spectrum

Gel-free DryBlock construction (OFS)

Gel-free DryBlock construction (OFS) reduces splice prep time by up to 80% vs. gel-filled designs

Jacket and construction options span single jacket (SJ)

Jacket and construction options span single jacket (SJ) through double-armored (DA): corrugated steel tape armor for direct-burial without conduit or in rodent-prone areas; OFS Fortex DT Light Armor is gel-free and mass-fusion-ready

All-dielectric ADSS

All-dielectric ADSS variant for aerial self-support---no messenger wire, no grounding on energized power lines; aramid strength members support spans to ~1,500 m depending on loading; OFS PowerGuide DT double-jacket eliminates all gels

Fiber counts from 12 to 864

Fiber counts from 12 to 864; standard reel lengths 1 km and 2 km; multimode OM3/OM4 available for campus and data center interconnect

Ribbon - High Fiber Count Backbone & Trunk

Fujikura Ribbon Fiber Splicing kit 6-22-26-8089 Medium



  • For high-density backbone and trunk, hyperscale data center interconnect, and central office / carrier-hotel cabling

  • Fiber counts from 144 to 6,912+; outside diameter is critical for duct-fill calculations

  • Standard matrix, rollable, and intermittently bonded ribbon (IBR) constructions; rollable / IBR allows higher packing density in a smaller diameter

  • 12-fiber mass-fusion splicing dramatically reduces splice time vs. single-fiber splicing

  • Single jacket, double jacket, armored, or all-dielectric construction

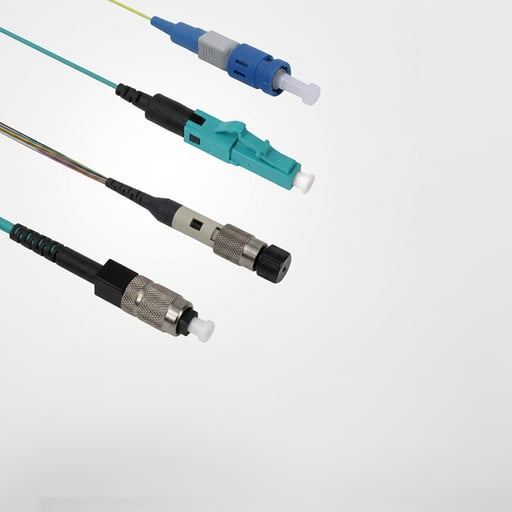

Connectors

  • bookmark_check
    SC simplex and duplex---standard connector for OSP distribution networks
  • bookmark_check
    LC simplex and duplex---small form factor for high-density panels and enclosures
  • bookmark_check
    ST bayonet and FC threaded styles for legacy systems and specialty applications
  • bookmark_check
    AFL splice-on connectors - field-installable using fusion splicer; no epoxy or polishing
  • bookmark_check
    Pre-terminated pigtails and jumpers---factory-polished for consistent, documented insertion loss
  • bookmark_check
    Fiber counts from 12 to 864; standard reel lengths 1 km and 2 km; multimode OM3/OM4 available for campus and data center interconnect
Galloway_Fiber_Connectors

Adapters & Bulkheads

  • bookmark_check
    SC, LC, ST, and FC simplex and duplex adapter styles; ceramic split sleeve for single-mode low-loss connections
  • bookmark_check
    Panel-mount bulkheads for enclosure, patch panel, and closure installation
  • bookmark_check
    FOSC 450 patch tray adapter plates---holds up to 16 SC-style adapters per tray
Galloway_Fiber_Patch_Tray

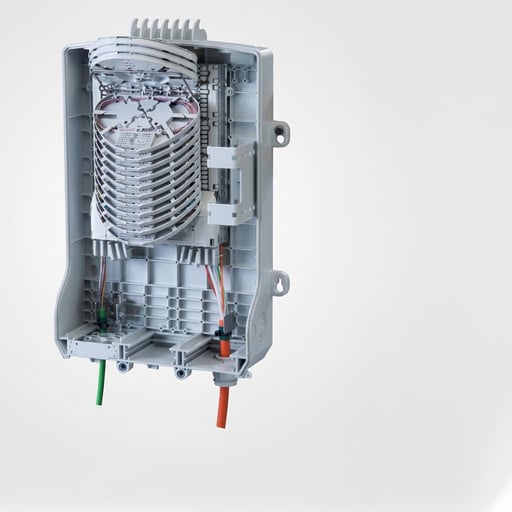

Patch Panels & Cable Management

  • bookmark_check
    1U, 2U, and 4U rack-mount panels in 12, 24, 48, and 96-port configurations
  • bookmark_check
    Wall-mount enclosures for smaller terminal and MDU installations
  • bookmark_check
    Radius limiters, routing rings, and cable management guides for bend-radius protection
Galloway_Fiber_Terminal_Hardware

Optical Splitters & WDMs

  • bookmark_check
    Passive PLC splitters: 1×2 through 1×64 for PON distribution networks
  • bookmark_check
    Splice-in tube style and connector-access box configurations available
  • bookmark_check
    CommScope WaveSmart ruggedized splitters: ruggedized jacketing, bend-insensitive fiber on all legs
  • bookmark_check
    CWDM and BWDM modules for wavelength overlay and network monitoring functions
Galloway_Fiber_PLC_Splitter

Flat Drop - Last-Mile FTTH

  • Flat self-supporting design for last-mile drops to home or business---aerial self-support or direct-buried final span

  • 1, 2, 4, 6, and 12-fiber counts; G.657.A2 bend-tolerant fiber typical; compatible with standard wedge clamps and closure strain reliefs

  • Toneable (copper toner) variant locates buried drops after install without digging; all-dielectric version also available

  • MDPE outdoor jacket with flame-retardant option for indoor transition; pre-connectorized (OptiTap / hardened) or bulk reel; RUS (RDUS)-listed options available

Product Reference

Product Type Configurations Manufacturers
Connectors SC, LC, ST, FC; pre-polished or splice-on AFL, CommScope
Adapters / Bulkheads SC, LC, FC simplex/duplex; ceramic sleeve CommScope
Patch Panels 12–96 port, 1U/2U/4U rack or wall-mount CommScope
Optical Splitters 1×2 to 1×64 PLC CommScope
WDM Modules CWDM, BWDM CommScope
Jumpers / Pigtails SC, LC; SM OS2 / MM OM3/OM4; various lengths AFL, CommScope

Technical Specifications

Specification Standard Stocked Range Standard Stocked Range
 Standard Stocked Range Standard Stocked Range

Material

High-Density Polyethylene (HDPE)







Available Sizes

3/4” through 6” diameter







SDR Options

SDR 7, 9, 11, 13.5, 15.5 (controlled by outside diameter and minimum wall thickness)







SIDR Options

SIDR 9, 11.5 (controlled by inside diameter and minimum wall thickness)







Schedule Options

Schedule 40 and Schedule 80







Standards Compliance

ASTM D3035, ASTM D2239, ASTM F2160







Listings

RUS Listed for telecommunications applications







Pull Tape

Available empty or with factory pre-installed pull tape (1,250 lb typical tensile strength)







Standard Colors

Orange, blue, green, black, white, red, brown, gray, terra cotta, yellow. Custom colors and stripe combinations available.







Reel Sizes

66”, 84”, 96”, 102”, 114” diameter steel reels







Conduit Markings

Permanent marking includes material type, applicable standards, production information, and sequential foot/meter markings. Custom marking available.






Eyebrow

Title would go here

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Quisque hendrerit purus ex, eget molestie quam rutrum vitae. In egestas faucibus magna, vel malesuada mi tempor a. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Quisque hendrerit purus ex, eget molestie quam rutrum vitae. In egestas faucibus magna, vel malesuada mi tempor a.

Button Text Button Text

Brands we carry

Need Fiber Connectivity Hardware?

Galloway stocks fiber connectivity hardware and passive components across our distribution network. Whether you have defined specifications or need assistance selecting the right connectors, adapters, or splitters for your installation, our team can help ensure the right product is supplied and delivered.

Whether you’re working a full build-out or just need the final pallet to finish a job, we keep your projects moving forward
