PVC Schedule 80 Conduit

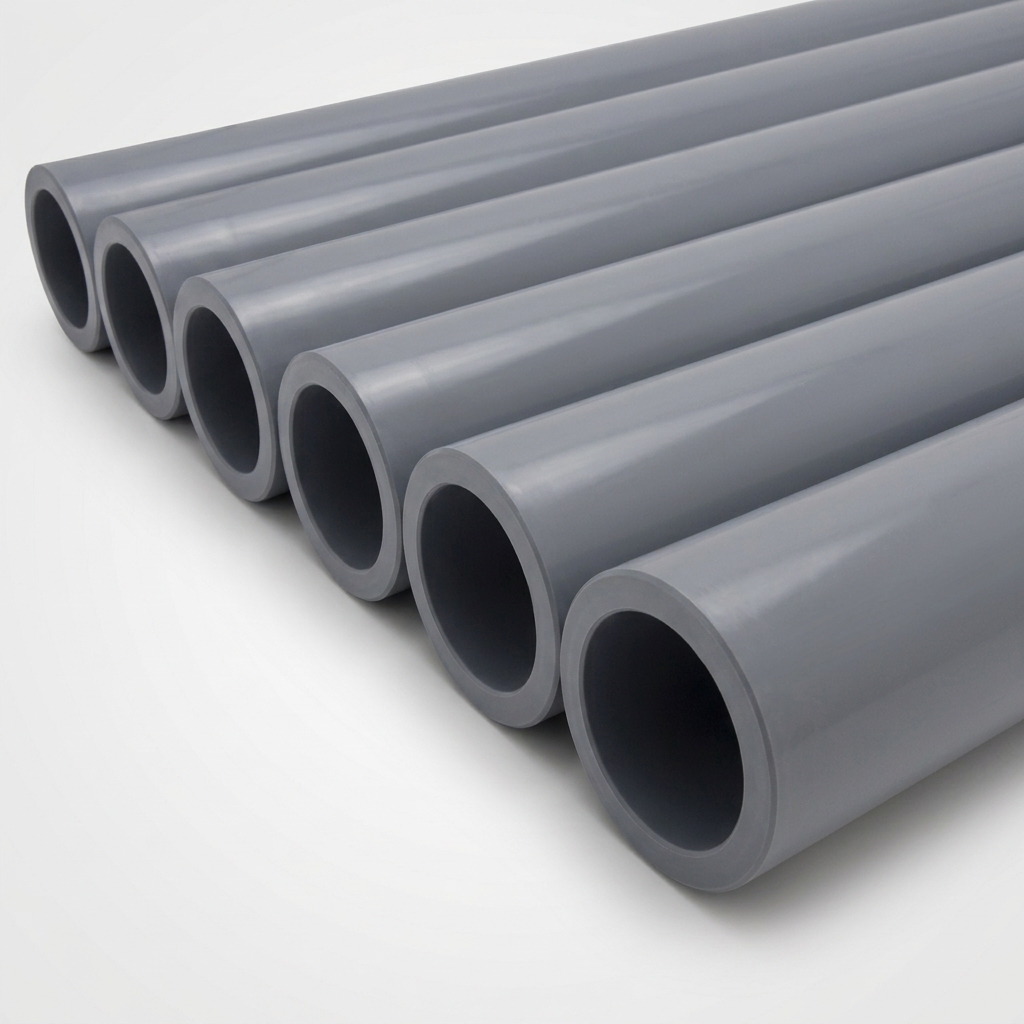

PVC Schedule 80 conduit is the extra heavy wall version of rigid PVC raceway, specifically identified for use in areas subject to physical damage per NEC 352.12(C). With thicker walls and the same outside diameter as Schedule 40, Schedule 80 provides additional impact resistance and crush strength for demanding above-ground and below-ground installations. Galloway stocks PVC Schedule 80 conduit from manufacturers like Prime Conduit and Atkore (Heritage Plastics).

Speak to a specialist call
Galloway_Pipe_Schedule80
Reels in the Yard Greenfield OH SML

Features

The specifications below separate what Schedule 80 shares with Schedule 40 — listings, ratings, and PVC properties — from what the extra wall changes: Added impact and crush resistance, the same outside diameter and fittings, and a smaller inside diameter.

  • ink_highlighter
    ink_highlighter

    ETL listed to UL 651

    and compliant with NEC Article 352—identified for use in areas subject to physical damage per 352.12(C)

  • ink_highlighter
    ink_highlighter

    Extra heavy wall construction

    provides superior impact and crush resistance compared to Schedule 40—required where conduit is exposed to vehicular traffic, equipment movement, or other mechanical hazards

  • ink_highlighter
    ink_highlighter

    Same outside diameter as Schedule 40

    uses the same fittings, elbows, and accessories, but with a smaller inside diameter due to thicker walls

  • ink_highlighter
    ink_highlighter

    Listed for above-ground and below-ground applications

    including direct burial, concrete encasement, exposed, and concealed installations

  • ink_highlighter
    ink_highlighter

    Sunlight resistant

    with superior weathering characteristics for outdoor exposed runs

  • ink_highlighter
    ink_highlighter

    Rated for use with 90°C conductors

    at maximum ambient temperature of 122°F (50°C)

  • ink_highlighter
    ink_highlighter

    Nonconductive and corrosion resistant

    same chemical and environmental benefits as Schedule 40 with added physical protection

  • ink_highlighter
    ink_highlighter

    Assembled with PVC solvent cement

    using standard nonmetallic fittings—no threading, welding, or special tools

Loose Tube - OSP Backbone, Feeder & Distribution

Fujikura Ribbon Fiber Splicing kit 6-22-26-8090 Medium

Color-coded loose buffer tubes

Protect individual fibers from mechanical and environmental stress; stranded designs carry 6 to 24 tubes, central-tube designs a single tube

More information chevron_right

Single-mode OS2 (G.652.D) standard, G.657.A1 for tighter bend routing;

OFS AllWave ZWP fiber gives zero water peak across the full wavelength spectrum

Gel-free DryBlock construction (OFS)

Reduces splice prep time by up to 80% vs. gel-filled designs

Jacket and construction options span single jacket (SJ) through double-armored (DA)

Corrugated steel tape armor for direct-burial without conduit or in rodent-prone areas; OFS Fortex DT Light Armor is gel-free and mass-fusion-ready

All-dielectric ADSS variant for aerial self-support

No messenger wire, no grounding on energized power lines; aramid strength members support spans to ~1,500 m depending on loading; OFS PowerGuide DT double-jacket eliminates all gels

Fiber counts from 12 to 864

Standard reel lengths 1 km and 2 km; multimode OM3/OM4 available for campus and data center interconnect

Loose Tube - OSP Backbone, Feeder & Distribution

Fujikura Ribbon Fiber Splicing kit 6-22-26-8090 Medium

noimage-3

Color-coded loose buffer tubes

Color-coded loose buffer tubes protect individual fibers from mechanical and environmental stress; stranded designs carry 6 to 24 tubes, central-tube designs a single tube

Single-mode OS2 (G.652.D)

Single-mode OS2 (G.652.D) standard, G.657.A1 for tighter bend routing; OFS AllWave ZWP fiber gives zero water peak across the full wavelength spectrum

Gel-free DryBlock construction (OFS)

Gel-free DryBlock construction (OFS) reduces splice prep time by up to 80% vs. gel-filled designs

Jacket and construction options span single jacket (SJ)

Jacket and construction options span single jacket (SJ) through double-armored (DA): corrugated steel tape armor for direct-burial without conduit or in rodent-prone areas; OFS Fortex DT Light Armor is gel-free and mass-fusion-ready

All-dielectric ADSS

All-dielectric ADSS variant for aerial self-support---no messenger wire, no grounding on energized power lines; aramid strength members support spans to ~1,500 m depending on loading; OFS PowerGuide DT double-jacket eliminates all gels

Fiber counts from 12 to 864

Fiber counts from 12 to 864; standard reel lengths 1 km and 2 km; multimode OM3/OM4 available for campus and data center interconnect

Ribbon - High Fiber Count Backbone & Trunk

Fujikura Ribbon Fiber Splicing kit 6-22-26-8089 Medium



  • For high-density backbone and trunk, hyperscale data center interconnect, and central office / carrier-hotel cabling

  • Fiber counts from 144 to 6,912+; outside diameter is critical for duct-fill calculations

  • Standard matrix, rollable, and intermittently bonded ribbon (IBR) constructions; rollable / IBR allows higher packing density in a smaller diameter

  • 12-fiber mass-fusion splicing dramatically reduces splice time vs. single-fiber splicing

  • Single jacket, double jacket, armored, or all-dielectric construction

Flat Drop - Last-Mile FTTH

  • Flat self-supporting design for last-mile drops to home or business---aerial self-support or direct-buried final span

  • 1, 2, 4, 6, and 12-fiber counts; G.657.A2 bend-tolerant fiber typical; compatible with standard wedge clamps and closure strain reliefs

  • Toneable (copper toner) variant locates buried drops after install without digging; all-dielectric version also available

  • MDPE outdoor jacket with flame-retardant option for indoor transition; pre-connectorized (OptiTap / hardened) or bulk reel; RUS (RDUS)-listed options available

Technical Specifications

The following specifications represent our standard stocked range.
Need a specific length, fitting, or crate quantity?
Give us a call. We’ll figure it out.

Specification Standard Stocked Range

Material

Rigid Polyvinyl Chloride (PVC), minimum cell classification 12123 per ASTM D1784

Available Sizes

1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”, 2-1/2”, 3”, 4”, 5”, 6”

Standards Compliance

ETL Listed to UL 651 (E35297) | NEMA TC-2 | Federal Spec WC1094A | NEC Article 352 | CSA C22.2 No. 211.2

Standard Lengths

10’ and 20’ with one belled end per length

Physical Damage Rating

Identified for use in areas subject to physical damage per NEC 352.12(C)

Conductor Rating

Rated for use with 90°C conductors; maximum ambient temperature 122°F (50°C)

Joining Method

PVC solvent cement (solvent weld) using standard nonmetallic fittings

UV Resistance

Sunlight resistant with superior weathering characteristics

Standard Color

Dark gray

Dimensional References

Schedule 40 wall thickness increases with conduit size to maintain structural integrity:

Size O.D. I.D. Wall Wt./100'

1/2”

.840”

.546”

.147”

21 lbs

3/4”

1.050”

.742”

.154”

30 lbs

1”

1.315”

.957”

.179”

44 lbs

1-1/4”

1.660”

1.278”

.191”

60 lbs

1-1/2”

1.900”

1.500”

.200”

72 lbs

2”

2.375”

1.939”

.218”

101 lbs

2-1/2”

2.875”

2.323”

.276”

154 lbs

3”

3.500”

2.900”

.300”

210 lbs

4”

4.500”

3.826”

.337”

308 lbs

5”

5.563”

4.813”

.375”

428 lbs

6”

6.625”

5.761”

.432”

588 lbs

Technical Specifications

Specification Standard Stocked Range Standard Stocked Range
 Standard Stocked Range Standard Stocked Range

Material

High-Density Polyethylene (HDPE)







Available Sizes

3/4” through 6” diameter







SDR Options

SDR 7, 9, 11, 13.5, 15.5 (controlled by outside diameter and minimum wall thickness)







SIDR Options

SIDR 9, 11.5 (controlled by inside diameter and minimum wall thickness)







Schedule Options

Schedule 40 and Schedule 80







Standards Compliance

ASTM D3035, ASTM D2239, ASTM F2160







Listings

RUS Listed for telecommunications applications







Pull Tape

Available empty or with factory pre-installed pull tape (1,250 lb typical tensile strength)







Standard Colors

Orange, blue, green, black, white, red, brown, gray, terra cotta, yellow. Custom colors and stripe combinations available.







Reel Sizes

66”, 84”, 96”, 102”, 114” diameter steel reels







Conduit Markings

Permanent marking includes material type, applicable standards, production information, and sequential foot/meter markings. Custom marking available.
