Plenum Innerduct

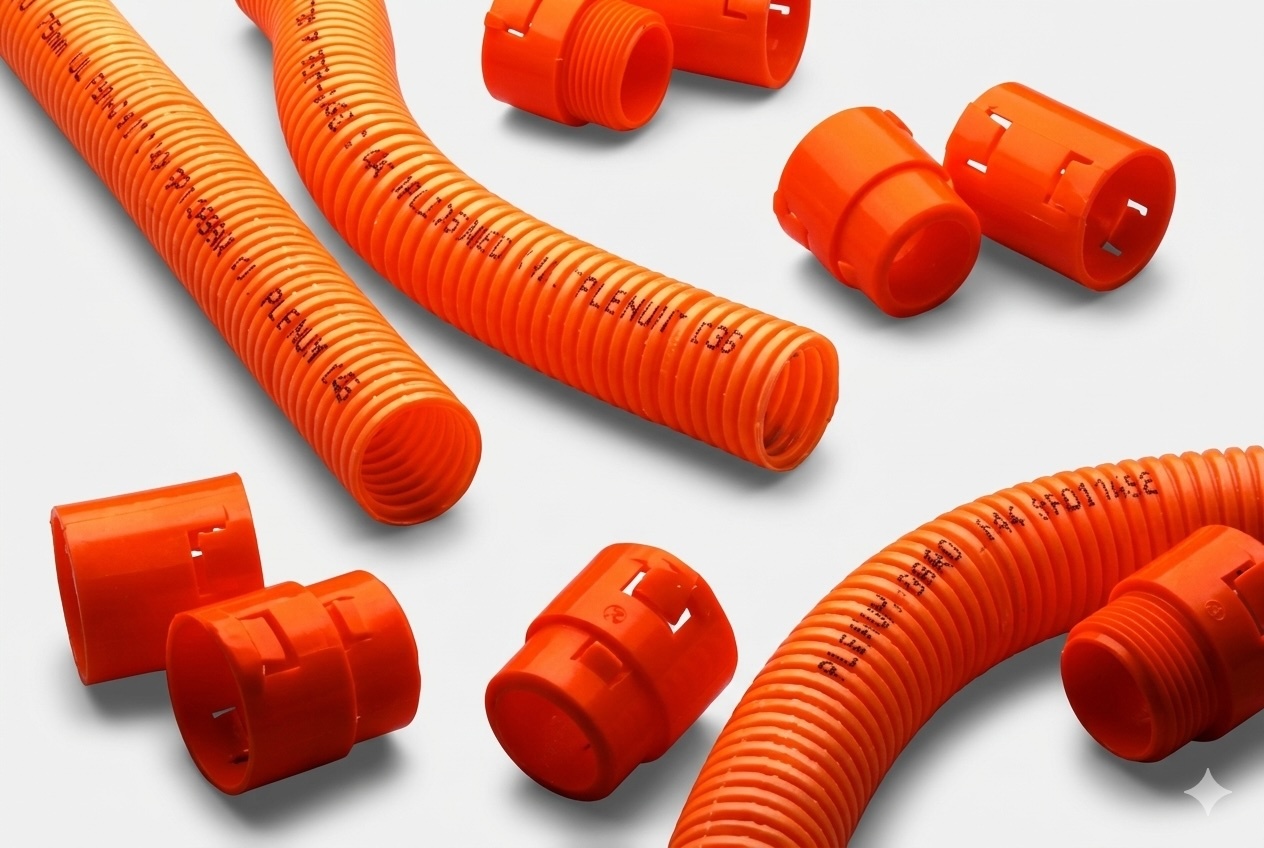

Plenum innerduct is used in indoor environments where strict fire and smoke requirements apply, such as air handling spaces, risers, and commercial building infrastructure. Manufactured from PVDF (polyvinylidene fluoride), it meets the most stringent flame and smoke standards while providing a flexible pathway for fiber and communications cables. Galloway stocks plenum innerduct in the sizes and configurations required for indoor cable management across data centers, commercial buildings, and multi-dwelling units.

Speak to a specialist call
Galloway_Plenum_Innerduct
Reels in the Yard Greenfield OH SML

Features

Plenum innerduct is designed for installations where fire-rated cable pathways are required within building environments:

  • check_circle
    check_circle

    Manufactured from PVDF fluoropolymer

    Providing inherent flame resistance without added chemical retardants

  • check_circle
    check_circle

    UL 2024 listed

    For plenum, riser, and general purpose applications—one product covers all NEC use categories

  • check_circle
    check_circle

    Fire performance standards

    Meets UL 910 (plenum), UL 1666 (riser), and UL 1581 (general purpose)

  • check_circle
    check_circle

    Corrugated design

    Allows flexible routing through ceiling plenums, raised floors, and riser shafts

  • check_circle
    check_circle

    Lightweight construction

    Simplifies handling and installation in overhead and vertical environments

  • check_circle
    check_circle

    Factory pre-installed pull tape

    Enables immediate cable placement

  • check_circle
    check_circle

    Sequential footage markings

    Provide accurate measurement and traceability in the field

  • check_circle
    check_circle

    Colors

    Available in standard orange with additional colors for pathway identification

Technical Specifications

The following specifications represent our standard stocked range. If you require a specific size, color, or reel configuration outside of this range, our team can help source the appropriate product.

Specification Standard Stocked Range

Material

PVDF (Polyvinylidene Fluoride)—a fluoropolymer, not HDPE

Available Sizes

1", 1 1/4", 1 1/2"

Standards Compliance

UL 2024 (Listed), UL 910 (Plenum), UL 1666 (Riser), UL 1581 (General Purpose)

NEC Compliance

Article 770 (Optical Fiber Cables and Raceways), Article 800 (Communications Circuits)

Canadian Listing

CSA FT-6 (plenum equivalent)

Pull Tape

Factory pre-installed pull tape standard (900 lb typical tensile strength)

Standard Color

Orange (industry standard for datacom). Additional colors available on request.

Conduit Markings

Sequential footage markings and product identification. Custom marking available.

Packaging

Coils (250’, 500’) and reels (1,000’ to 5,000’). Custom lengths available.

Technical Specifications

Specification Standard Stocked Range Standard Stocked Range
 Standard Stocked Range Standard Stocked Range

Material

High-Density Polyethylene (HDPE)







Available Sizes

3/4” through 6” diameter







SDR Options

SDR 7, 9, 11, 13.5, 15.5 (controlled by outside diameter and minimum wall thickness)







SIDR Options

SIDR 9, 11.5 (controlled by inside diameter and minimum wall thickness)







Schedule Options

Schedule 40 and Schedule 80







Standards Compliance

ASTM D3035, ASTM D2239, ASTM F2160







Listings

RUS Listed for telecommunications applications







Pull Tape

Available empty or with factory pre-installed pull tape (1,250 lb typical tensile strength)







Standard Colors

Orange, blue, green, black, white, red, brown, gray, terra cotta, yellow. Custom colors and stripe combinations available.







Reel Sizes

66”, 84”, 96”, 102”, 114” diameter steel reels







Conduit Markings

Permanent marking includes material type, applicable standards, production information, and sequential foot/meter markings. Custom marking available.







Brands we carry

Need Plenum Innerduct for your next build?

Galloway stocks plenum-rated innerduct across our distribution network, with the sizes and configurations required for indoor cable installations. Whether you're working from building specifications or determining the appropriate pathway for plenum, riser, or general-purpose environments, our team can help ensure the right product is selected and delivered.

At Galloway, your Monday morning delivery gets the same level of attention as a Friday night emergency. To us, every customer and every job matters.
