Marking & Identification
Professional marking supplies for underground construction—inverted marking paint in APWA standard colors, underground warning tape, utility warning posts, and cable identification products. Galloway stocks marking and identification supplies from Rust-Oleum, Pro-Line Safety, Kris-Tech, and ACP at regional locations across the US.

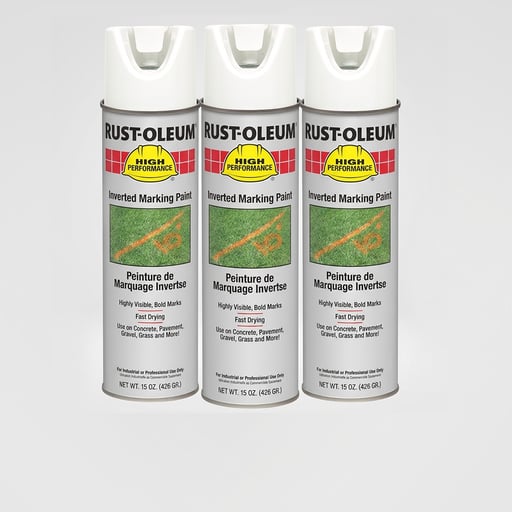

Rust-Oleum V2300 Inverted marking paint
-
bookmark_checkHigh-output spray tip for bold, visible markings
-
bookmark_checkFast-drying formulation; guaranteed not to clog
-
bookmark_checkCompatible with Rust-Oleum Marking Wand #2393000 for precise application
AWPA Standard colors (manufacturer data)
|
Color |
Part Number |
APWA Use |
Utility Type |
Hazard |
|
Alert Orange |
V2354838 |
Telecom, alarm, signal |
Communication |
Infrastructure damage |
|
Caution Blue |
V2324838 |
Potable water |
Water |
Contamination |
|
Caution Yellow |
V2345838 |
Gas, oil, steam, petroleum |
Gas/Petroleum |
Explosion |
|
Safety Red |
V2363838 |
Electric power lines |
Electric |
Electrocution |
|
Fluorescent Green |
V2333838 |
Sewer and drain lines |
Sewer |
Environmental |
|
White |
V2392838 |
Proposed excavation limits |
Excavation |
Boundary marking |
|
Fluorescent Orange |
V2355838 |
High visibility general |
General |
— |
|
High Vis Yellow |
V2344838 |
Enhanced warning |
General |
— |
Rust-Oleum V2300 System product data. Additional colors (Clear V2301838, Fluorescent Red-Orange V2358838) also available.
Technical Specifications
| Specification | Standard Stocked Range | Standard Stocked Range |
Standard Stocked Range | Standard Stocked Range |
|---|---|---|---|---|
|
Material |
High-Density Polyethylene (HDPE) |
|
|
|
|
Available Sizes |
3/4” through 6” diameter |
|
|
|
|
SDR Options |
SDR 7, 9, 11, 13.5, 15.5 (controlled by outside diameter and minimum wall thickness) |
|
|
|
|
SIDR Options |
SIDR 9, 11.5 (controlled by inside diameter and minimum wall thickness) |
|
|
|
|
Schedule Options |
Schedule 40 and Schedule 80 |
|
|
|
|
Standards Compliance |
ASTM D3035, ASTM D2239, ASTM F2160 |
|
|
|
|
Listings |
RUS Listed for telecommunications applications |
|
|
|
|
Pull Tape |
Available empty or with factory pre-installed pull tape (1,250 lb typical tensile strength) |
|
|
|
|
Standard Colors |
Orange, blue, green, black, white, red, brown, gray, terra cotta, yellow. Custom colors and stripe combinations available. |
|
|
|
|
Reel Sizes |
66”, 84”, 96”, 102”, 114” diameter steel reels |
|
|
|
|
Conduit Markings |
Permanent marking includes material type, applicable standards, production information, and sequential foot/meter markings. Custom marking available. |
|
|
|
Warning tape & posts
-

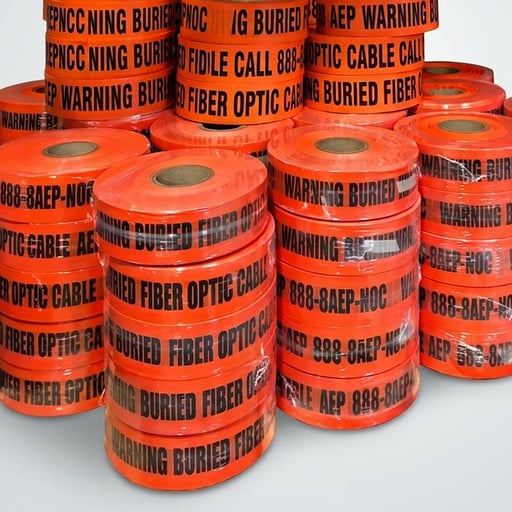

bookmark_checkUnderground warning tape:Detectable and non-detectable versions, APWA color-coded by utility type. Available from Kris-Tech (standard 4 mm, super-stretch 6 mm, woven reinforced 8 mm) and Pro-Line Safety
-
bookmark_checkWrap-around cable markers and identification tape (ACP)
-

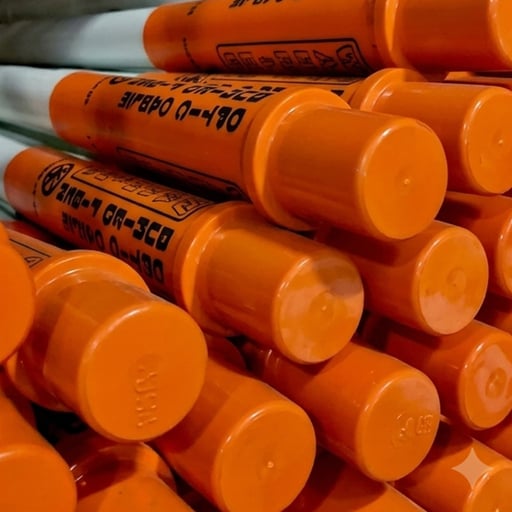

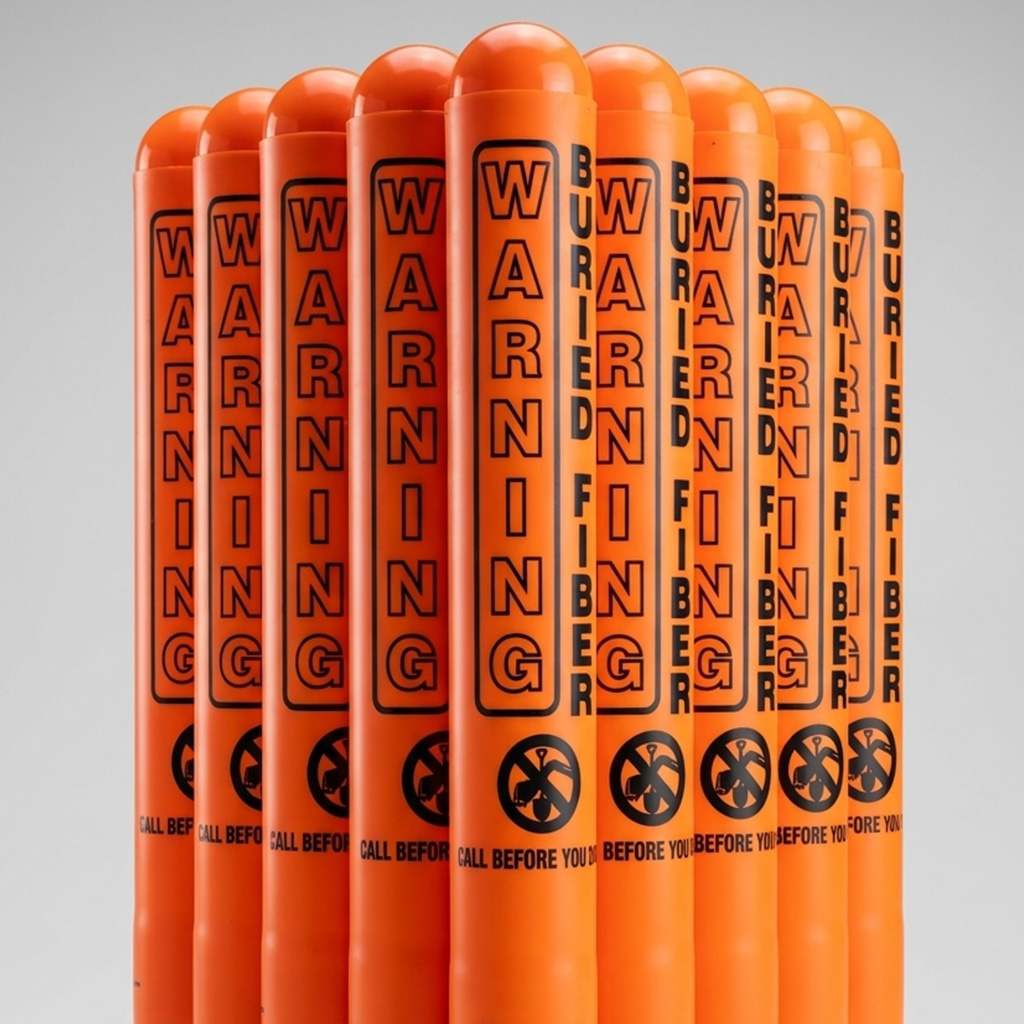

bookmark_checkUtility warning posts:Cable and pipe warning markers for permanent identification of buried routes. Sizes up to 5” x 5” x 16’. Color-coded by utility type
-
bookmark_checkCable tags, phase tape, and weatherproof labelling materials
Brands we carry
You may also need
Tracer Wire
Locating wire laid with the buried line — trace it, then mark the route.
Locating & Detection Equipment
The locator that finds the line before you mark and record it.
HDPE Smoothwall Conduit
The buried route the warning tape and posts mark and protect.
Need Marking Supplies
Galloway stocks marking and identification supplies across our distribution network. Whether you need APWA-compliant marking paint, underground warning tape, or utility warning posts, our team can help ensure the right product is available and delivered.
At Galloway, we don’t wait for a spec sheet. Talk us through the job and we’ll make sure you get what you need.
