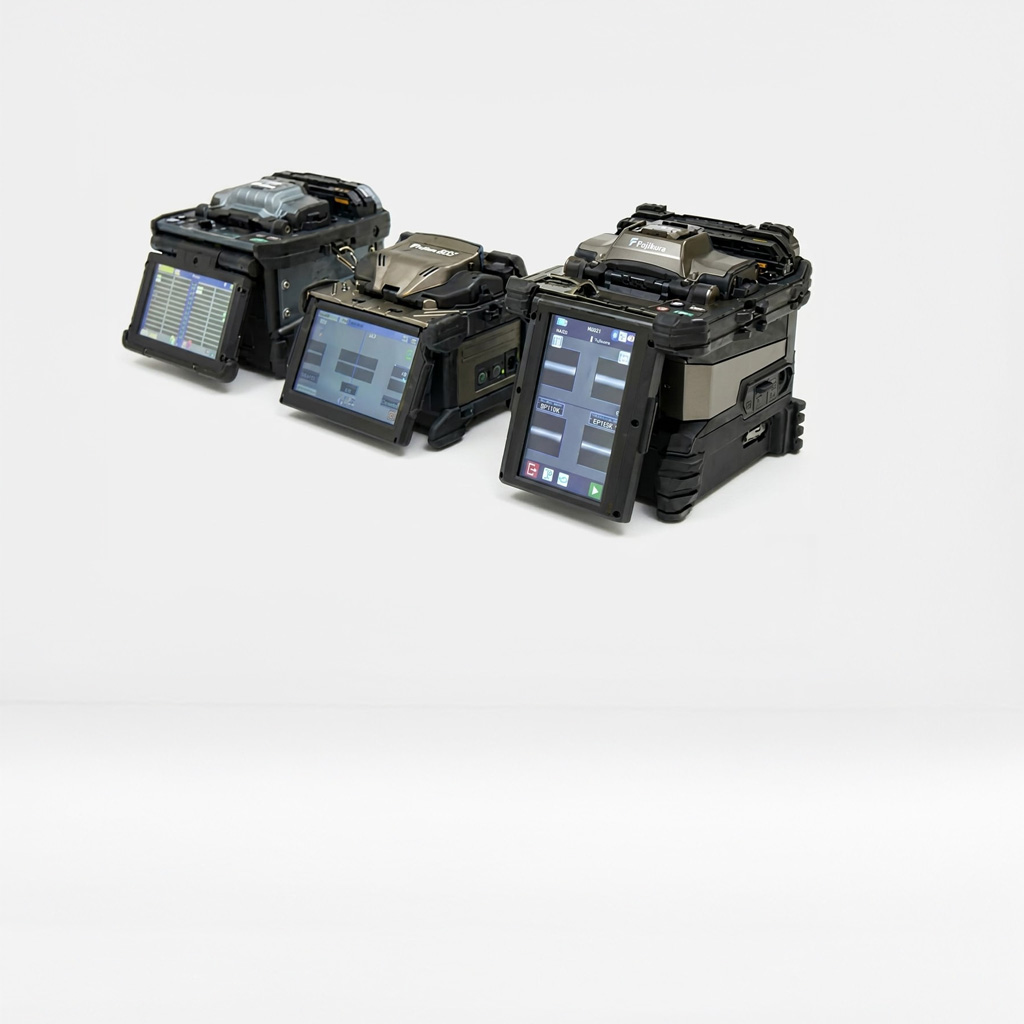

Fiber optic test and splicing equipment is used at every stage of network construction and maintenance---from fusion splicing in the field to OTDR testing during commissioning. Galloway stocks fusion splicers, cleavers, test equipment, and tool kits from Fujikura and other leading manufacturers at regional locations across the US.

Speak to a specialist call
Galloway_Fiber_Test_Splice_S
Reels in the Yard Greenfield OH SML

Loose Tube - OSP Backbone, Feeder & Distribution

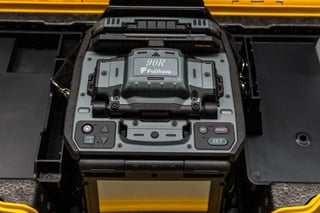

Fujikura Ribbon Fiber Splicing kit 6-22-26-8090 Medium

Color-coded loose buffer tubes

Protect individual fibers from mechanical and environmental stress; stranded designs carry 6 to 24 tubes, central-tube designs a single tube

More information chevron_right

Single-mode OS2 (G.652.D) standard, G.657.A1 for tighter bend routing;

OFS AllWave ZWP fiber gives zero water peak across the full wavelength spectrum

Gel-free DryBlock construction (OFS)

Reduces splice prep time by up to 80% vs. gel-filled designs

Jacket and construction options span single jacket (SJ) through double-armored (DA)

Corrugated steel tape armor for direct-burial without conduit or in rodent-prone areas; OFS Fortex DT Light Armor is gel-free and mass-fusion-ready

All-dielectric ADSS variant for aerial self-support

No messenger wire, no grounding on energized power lines; aramid strength members support spans to ~1,500 m depending on loading; OFS PowerGuide DT double-jacket eliminates all gels

Fiber counts from 12 to 864

Standard reel lengths 1 km and 2 km; multimode OM3/OM4 available for campus and data center interconnect

Loose Tube - OSP Backbone, Feeder & Distribution

Fujikura Ribbon Fiber Splicing kit 6-22-26-8090 Medium

noimage-3

Color-coded loose buffer tubes

Color-coded loose buffer tubes protect individual fibers from mechanical and environmental stress; stranded designs carry 6 to 24 tubes, central-tube designs a single tube

Single-mode OS2 (G.652.D)

Single-mode OS2 (G.652.D) standard, G.657.A1 for tighter bend routing; OFS AllWave ZWP fiber gives zero water peak across the full wavelength spectrum

Gel-free DryBlock construction (OFS)

Gel-free DryBlock construction (OFS) reduces splice prep time by up to 80% vs. gel-filled designs

Jacket and construction options span single jacket (SJ)

Jacket and construction options span single jacket (SJ) through double-armored (DA): corrugated steel tape armor for direct-burial without conduit or in rodent-prone areas; OFS Fortex DT Light Armor is gel-free and mass-fusion-ready

All-dielectric ADSS

All-dielectric ADSS variant for aerial self-support---no messenger wire, no grounding on energized power lines; aramid strength members support spans to ~1,500 m depending on loading; OFS PowerGuide DT double-jacket eliminates all gels

Fiber counts from 12 to 864

Fiber counts from 12 to 864; standard reel lengths 1 km and 2 km; multimode OM3/OM4 available for campus and data center interconnect

Ribbon - High Fiber Count Backbone & Trunk

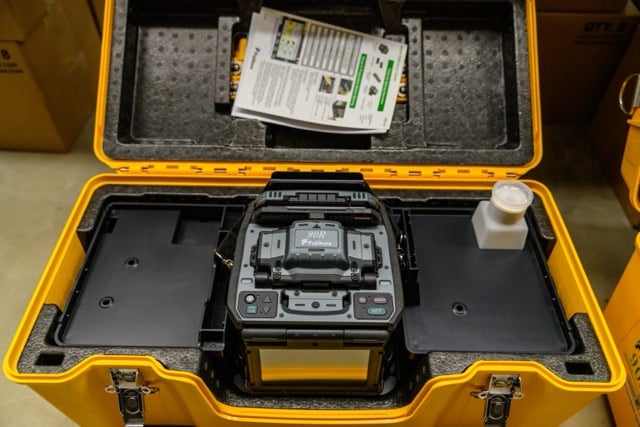

Fujikura Ribbon Fiber Splicing kit 6-22-26-8089 Medium



  • For high-density backbone and trunk, hyperscale data center interconnect, and central office / carrier-hotel cabling

  • Fiber counts from 144 to 6,912+; outside diameter is critical for duct-fill calculations

  • Standard matrix, rollable, and intermittently bonded ribbon (IBR) constructions; rollable / IBR allows higher packing density in a smaller diameter

  • 12-fiber mass-fusion splicing dramatically reduces splice time vs. single-fiber splicing

  • Single jacket, double jacket, armored, or all-dielectric construction

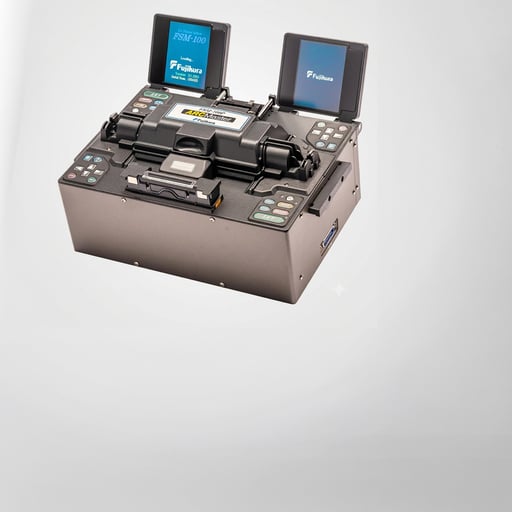

Fujikura Fusion Splicers - FSM Series

  • bookmark_check
    Core-to-core alignment for consistent low-loss splices regardless of cladding geometry
  • bookmark_check
    Automated wind protector: opens and closes automatically to initiate and complete the splice cycle---reduces operational steps in field conditions
  • bookmark_check
    Automated clamshell tube heater: heats both sides of protection sleeve simultaneously
  • bookmark_check
    FSM-70S / 70S+: 7-second splice time, 14-second tube heat; 15 m/s (34 mph) wind resistance; withstands 30" drop test
  • bookmark_check
    FSM-80S: successor to FSM-60S; fully automated wind cover and tube heater; 200 splices/shrinks per Li-ion charge; 5,000 splices per electrode pair
  • bookmark_check
    Splice loss: 0.02 dB typical (SM), 0.01 dB typical (MM)---measured by cut-back method per ITU-T/IEC standards
  • bookmark_check
    USB connectivity; on-board training videos and operation manuals; FSM-70S+ adds Bluetooth
    Lorem ipsum dolor sit amet, consectetur adipiscing elit.
Galloway_Fiber_Fusion_Splicer-1

Technical Specification: Fujikura FSM-70S+ Splicer

Specification Value
Splice Time (SM Ultra Fast / Fast / Auto) 6 / 7 / 10 Seconds
Tube Heating Time (FP-03 sleeve) 13 Seconds
Typical Splice Loss (SM / MM) 0.02 dB / 0.01 dB
Battery Life ~200 Splices + Shrinks per charge
Wind Resistance Up to 15 m/s (34 mph)
Drop Resistance 30" (762 mm) drop test
Fiber Types Supported SM, MM, DS, NZDS, CS, Erbium-doped
Dimensions (W × D × H) 146 × 159 × 150 mm
Weight 2.5 kg (5.5 lb) with AC adapter

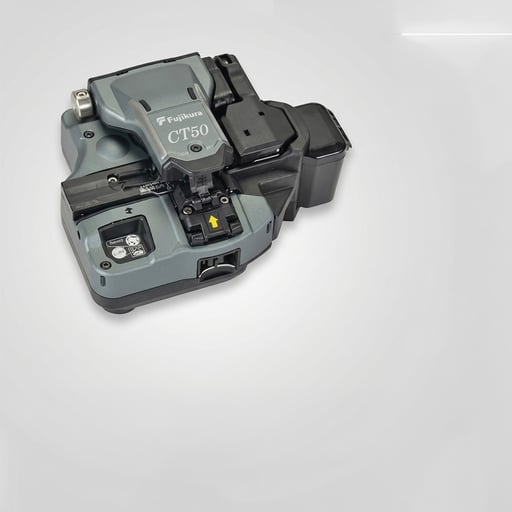

Fiber Cleavers

  • bookmark_check
    High-precision cleavers compatible with all Fujikura / AFL splicers
  • bookmark_check
    CT-30A single-fiber cleaver: Compact, 48,000+ cleave capacity, 250 µm and 900 µm coating diameter
  • bookmark_check
    CT-30 ribbon cleaver: up to 12-fiber ribbons for mass fusion splicing applications
Galloway_Fiber_Cleavers

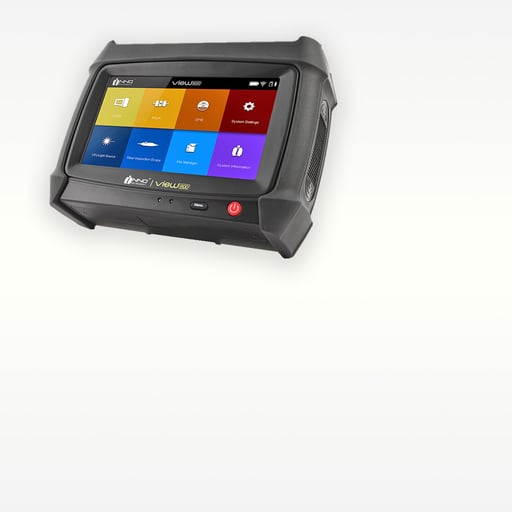

Test Equipment - OTDR, VFL & Power Meters

  • bookmark_check
    Inno View 600 OTDR: multifunction platform combining OTDR, VFL light source, power meter, and fiber inspection in a single tablet-style field instrument
  • bookmark_check
    Visual Fault Locators: pen-style, pocket-sized; visible red laser for identifying breaks, tight bends, and bad connectors on short fiber segments
  • bookmark_check
    Live Fiber Identifier: identifies optical signal presence and direction on a live fiber without disconnecting---also converts to optical power meter
  • bookmark_check
    FiberChek Probe Microscope: 400× handheld inspection with PASS/FAIL analysis to IEC 61300-3-35; USB, Wi-Fi, and Bluetooth for report export
Galloway_Fiber_Test_Equipment

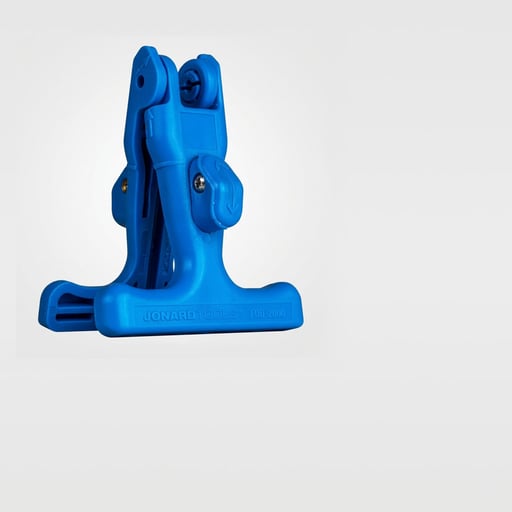

Splicing Tool Kits & Consumables

  • bookmark_check
    Full line of fiber strippers, round cable strippers, cable slitters, Kevlar cutting shears, screwdrivers, pliers, and flashlights
  • bookmark_check
    Fiber connector cleaners, fiber wipes, and alcohol dispensers
  • bookmark_check
    Heat-shrink protection sleeves: 60 mm, 40 mm, and micro sizes
  • bookmark_check
    Replacement electrodes: Fujikura ELCT2-20A (standard across FSM-70S and 80S)
Galloway_Fiber_Slitting_Rigging_Tool

Flat Drop - Last-Mile FTTH

  • Flat self-supporting design for last-mile drops to home or business---aerial self-support or direct-buried final span

  • 1, 2, 4, 6, and 12-fiber counts; G.657.A2 bend-tolerant fiber typical; compatible with standard wedge clamps and closure strain reliefs

  • Toneable (copper toner) variant locates buried drops after install without digging; all-dielectric version also available

  • MDPE outdoor jacket with flame-retardant option for indoor transition; pre-connectorized (OptiTap / hardened) or bulk reel; RUS (RDUS)-listed options available

Technical Specifications

Specification Standard Stocked Range Standard Stocked Range
 Standard Stocked Range Standard Stocked Range

Material

High-Density Polyethylene (HDPE)







Available Sizes

3/4” through 6” diameter







SDR Options

SDR 7, 9, 11, 13.5, 15.5 (controlled by outside diameter and minimum wall thickness)







SIDR Options

SIDR 9, 11.5 (controlled by inside diameter and minimum wall thickness)







Schedule Options

Schedule 40 and Schedule 80







Standards Compliance

ASTM D3035, ASTM D2239, ASTM F2160







Listings

RUS Listed for telecommunications applications







Pull Tape

Available empty or with factory pre-installed pull tape (1,250 lb typical tensile strength)







Standard Colors

Orange, blue, green, black, white, red, brown, gray, terra cotta, yellow. Custom colors and stripe combinations available.







Reel Sizes

66”, 84”, 96”, 102”, 114” diameter steel reels







Conduit Markings

Permanent marking includes material type, applicable standards, production information, and sequential foot/meter markings. Custom marking available.






Eyebrow

Title would go here

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Quisque hendrerit purus ex, eget molestie quam rutrum vitae. In egestas faucibus magna, vel malesuada mi tempor a. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Quisque hendrerit purus ex, eget molestie quam rutrum vitae. In egestas faucibus magna, vel malesuada mi tempor a.

Button Text Button Text

Brands we carry

Equip Your Splice Crew

Galloway stocks fusion splicers, test equipment, and splicing consumables across our distribution network. Whether you need a specific splicer model, a complete kit, or replacement consumables to keep your equipment running, our team can help ensure the right product is supplied and delivered.
