Conduit & Fittings

HDPE Pressure Pipe - Water / Sewer

HDPE pressure pipe is used in water distribution, sewer force mains, reclaimed water systems, and industrial applications where a durable, leak-free pipeline is required. Manufactured from PE4710 resin and produced to AWWA and ASTM standards, it is available in a range of pressure ratings to match system requirements. Heat-fused joints create a continuous, fully restrained pipeline that eliminates mechanical joints and reduces the risk of leaks over the life of the system. Galloway stocks HDPE pressure pipe in the sizes, DR ratings, and material grades used across municipal and industrial infrastructure.

Speak to a specialist call

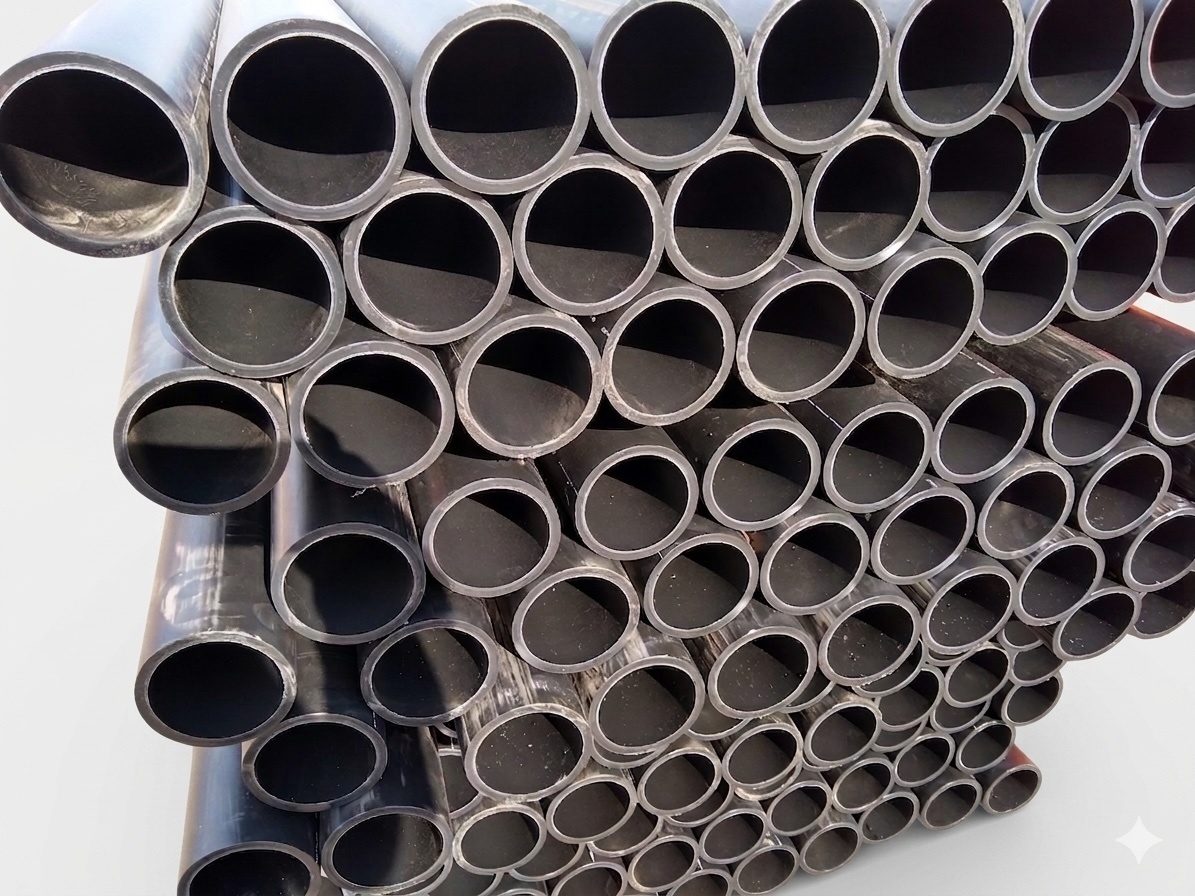

Galloway_HDPE_Pressure_Pipe
Reels in the Yard Greenfield OH SML

Features

HDPE pressure pipe is used in water and sewer systems where long-term reliability, leak-free performance, and resistance to corrosion are critical.

  • check_circle
    check_circle

    Manufactured from PE4710 high-performance resin

    Strong resistance to slow crack growth (SCG) and rapid crack propagation (RCP)

  • check_circle
    check_circle

    Heat-fused joints

    Butt fusion / electrofusion create a continuous, fully restrained pipeline with no mechanical joints

  • check_circle
    check_circle

    Corrosion-resistant material

    Maintains flow capacity without rust, scaling, or biological buildup

  • check_circle
    check_circle

    Flexible and ductile

    Accommodates ground movement, seismic activity, and freeze-thaw cycles without joint separation

  • check_circle
    check_circle

    NSF/ANSI 61 and NSF 14 certified

    For potable water applications

  • check_circle
    check_circle

    Lightweight construction

    Simplifies handling and installation compared to traditional pipe material

  • check_circle
    check_circle

    Available in IPS and DIPS sizing

    Integrating with existing infrastructure and fittings

  • check_circle
    check_circle

    Color-coded striping

    Per APWA standards for system identification (potable, sewer, reclaimed)

Technical Specifications

Galloway stocks a comprehensive range of PE4710 pressure pipe. The following represents our standard stocked range. For requirements outside of this range, including specific DRs, sizes, or material grades, our team can assist in sourcing the appropriate product.

Specification Standard Stocked Range

Material Grades

PE4710 (primary stock for potable water), PE3408, PE100

Cell Classification

PE445574C per ASTM D3350

IPS Sizes

2” through 20” IPS (Iron Pipe Size)

DIPS Sizes

2” through 20” DIPS (Ductile Iron Pipe Size)

DR Options (IPS)

DR 7, 9, 11, 13.5, 17, 21, 26, 32.5

DR Options (DIPS)

DR 7, 9, 11, 13.5, 17, 21, 26, 32.5

Standards

ASTM D3035 & AWWA C901 (2”–3” IPS) | ASTM F714 & AWWA C906 (4”+ IPS and all DIPS)

Certifications

NSF/ANSI 61 & NSF 14 (potable water contact) | PPI TR-4 Listed

Hydrostatic Design Stress

1,000 PSI at 73°F per PPI Hydrostatic Stress Board

Color / Striping

Solid black with co-extruded stripes: blue (potable), green (sewer), purple (reclaimed)

Packaging

Coiled pipe available through 6” OD | Straight lengths: 40’ and 50’ | Custom lengths available

Joining Methods

Butt fusion, electrofusion, mechanical fittings, flanged connections

Pressure rating by Dimension Ratio (DR)

DR (Dimension Ratio) describes the relationship between pipe outside diameter and wall thickness. Lower DR values indicate thicker walls and higher pressure capacity:

DR

PSI

Typical Applications

DR 7

335

High-pressure water transmission, industrial process lines, force mains

DR 9

255

Municipal water distribution, sewer force mains, industrial systems

DR 11

200

Standard municipal water mains, reclaimed water, general utility service

DR 13.5

160

Low-pressure water distribution, irrigation, light-duty force mains

DR 17

125

Sewer force mains, reclaimed water, low-pressure utility service

DR 21

100

Gravity sewer, drainage, low-head applications

DR 26

80

Non-pressure sewer, storm drainage, slip-lining applications

DR 32.5

65

Gravity sewer, non-pressure drainage, large-diameter slip-lining

Pressure ratings shown are for water at 73°F (23°C) and are determined by the Hydrostatic Design Stress as established by the PPI Hydrostatic Stress Board. Derate for elevated temperatures.

Technical Specifications

Specification Standard Stocked Range Standard Stocked Range
 Standard Stocked Range Standard Stocked Range

Material

High-Density Polyethylene (HDPE)







Available Sizes

3/4” through 6” diameter







SDR Options

SDR 7, 9, 11, 13.5, 15.5 (controlled by outside diameter and minimum wall thickness)







SIDR Options

SIDR 9, 11.5 (controlled by inside diameter and minimum wall thickness)







Schedule Options

Schedule 40 and Schedule 80







Standards Compliance

ASTM D3035, ASTM D2239, ASTM F2160







Listings

RUS Listed for telecommunications applications







Pull Tape

Available empty or with factory pre-installed pull tape (1,250 lb typical tensile strength)







Standard Colors

Orange, blue, green, black, white, red, brown, gray, terra cotta, yellow. Custom colors and stripe combinations available.







Reel Sizes

66”, 84”, 96”, 102”, 114” diameter steel reels







Conduit Markings

Permanent marking includes material type, applicable standards, production information, and sequential foot/meter markings. Custom marking available.







Brands we carry

Need HDPE Pressure Pipe for Your Next Build?

Galloway stocks PE4710 HDPE pressure pipe across our distribution network, with the sizes, DR ratings, and configurations required for water and sewer systems. Whether your specifications are defined or you need support selecting the appropriate pipe for your system pressure and application, our team can help ensure the right product is specified and delivered.

Whether it’s a big project or a small order, Team Galloway have your back.
