Bore-Gard Trenchless Raceway

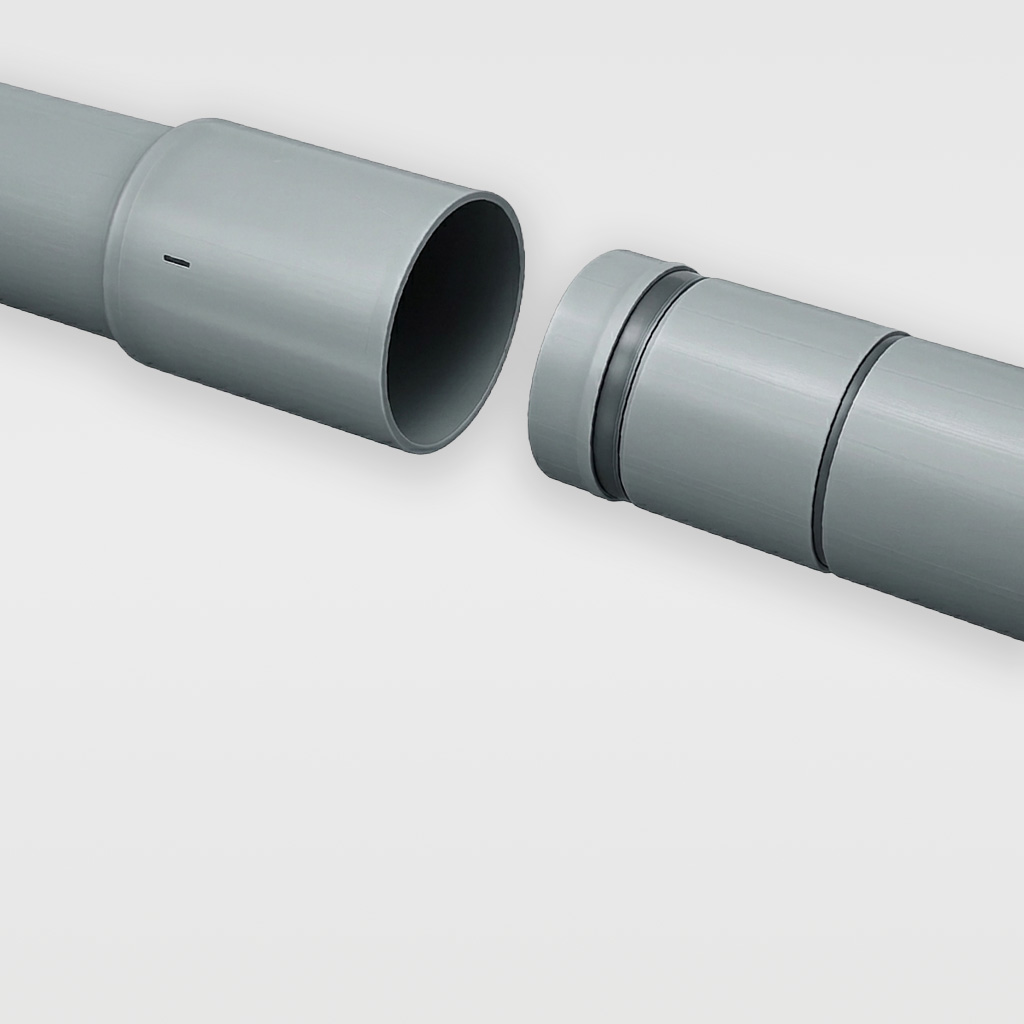

Bore-Gard by Prime Conduit is a heavy-wall PVC conduit system engineered specifically for horizontal directional drilling (HDD). Where standard PVC requires glued joints and HDPE on reels ovalizes, requires fusion equipment, and fights installation with coil memory, Bore-Gard ships in rigid 10-foot or 20-foot sticks with a watertight locking bell joint that assembles in under 15 seconds—no glue, no fusion, no special equipment. Available in Schedule 40 and Schedule 80 wall types. Galloway stocks Bore-Gard from Prime Conduit.
Loose Tube - OSP Backbone, Feeder & Distribution
Color-coded loose buffer tubes
Protect individual fibers from mechanical and environmental stress; stranded designs carry 6 to 24 tubes, central-tube designs a single tube
Single-mode OS2 (G.652.D) standard, G.657.A1 for tighter bend routing;
OFS AllWave ZWP fiber gives zero water peak across the full wavelength spectrum
Gel-free DryBlock construction (OFS)
Reduces splice prep time by up to 80% vs. gel-filled designs
Jacket and construction options span single jacket (SJ) through double-armored (DA)
Corrugated steel tape armor for direct-burial without conduit or in rodent-prone areas; OFS Fortex DT Light Armor is gel-free and mass-fusion-ready
All-dielectric ADSS variant for aerial self-support
No messenger wire, no grounding on energized power lines; aramid strength members support spans to ~1,500 m depending on loading; OFS PowerGuide DT double-jacket eliminates all gels
Fiber counts from 12 to 864
Standard reel lengths 1 km and 2 km; multimode OM3/OM4 available for campus and data center interconnect
Loose Tube - OSP Backbone, Feeder & Distribution
Color-coded loose buffer tubes
Color-coded loose buffer tubes protect individual fibers from mechanical and environmental stress; stranded designs carry 6 to 24 tubes, central-tube designs a single tube
Single-mode OS2 (G.652.D)
Single-mode OS2 (G.652.D) standard, G.657.A1 for tighter bend routing; OFS AllWave ZWP fiber gives zero water peak across the full wavelength spectrum
Gel-free DryBlock construction (OFS)
Gel-free DryBlock construction (OFS) reduces splice prep time by up to 80% vs. gel-filled designs
Jacket and construction options span single jacket (SJ)
Jacket and construction options span single jacket (SJ) through double-armored (DA): corrugated steel tape armor for direct-burial without conduit or in rodent-prone areas; OFS Fortex DT Light Armor is gel-free and mass-fusion-ready
All-dielectric ADSS
All-dielectric ADSS variant for aerial self-support---no messenger wire, no grounding on energized power lines; aramid strength members support spans to ~1,500 m depending on loading; OFS PowerGuide DT double-jacket eliminates all gels
Fiber counts from 12 to 864
Fiber counts from 12 to 864; standard reel lengths 1 km and 2 km; multimode OM3/OM4 available for campus and data center interconnect
Ribbon - High Fiber Count Backbone & Trunk
-
For high-density backbone and trunk, hyperscale data center interconnect, and central office / carrier-hotel cabling
-
Fiber counts from 144 to 6,912+; outside diameter is critical for duct-fill calculations
-
Standard matrix, rollable, and intermittently bonded ribbon (IBR) constructions; rollable / IBR allows higher packing density in a smaller diameter
-
12-fiber mass-fusion splicing dramatically reduces splice time vs. single-fiber splicing
-
Single jacket, double jacket, armored, or all-dielectric construction
Title would go here
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Quisque hendrerit purus ex, eget molestie quam rutrum vitae. In egestas faucibus magna, vel malesuada mi tempor a. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Quisque hendrerit purus ex, eget molestie quam rutrum vitae. In egestas faucibus magna, vel malesuada mi tempor a.
You may also need
HDD Tooling
Directional drill tooling, reamers, pulling eyes, and swivels — the boring gear that pulls Bore-Gard into the bore path.
PVC Couplings & Fittings
Sweeps, elbows, and adapters for Schedule 40 and 80 — for transitioning Bore-Gard into the standard PVC system.
Locating & Detection
Tracer wire and line locators — so a non-metallic Bore-Gard run can be found and verified after it's buried.
Brands we carry
Planning an HDD Project That Needs Reliable Conduit?
We stock Bore-Gard at Galloway locations in common sizes for immediate availability. Tell us your bore specs, conduit size, and timeline—and if you're evaluating Bore-Gard versus HDPE for an upcoming directional drilling project, we can walk through the real installed cost including equipment, labor, and waste. The per-foot price of pipe is only part of the story.
Whether you’re working a full build-out or just need the final pallet to finish a job, we keep your projects moving forward
