Conduit & Fittings

PVC Split Duct

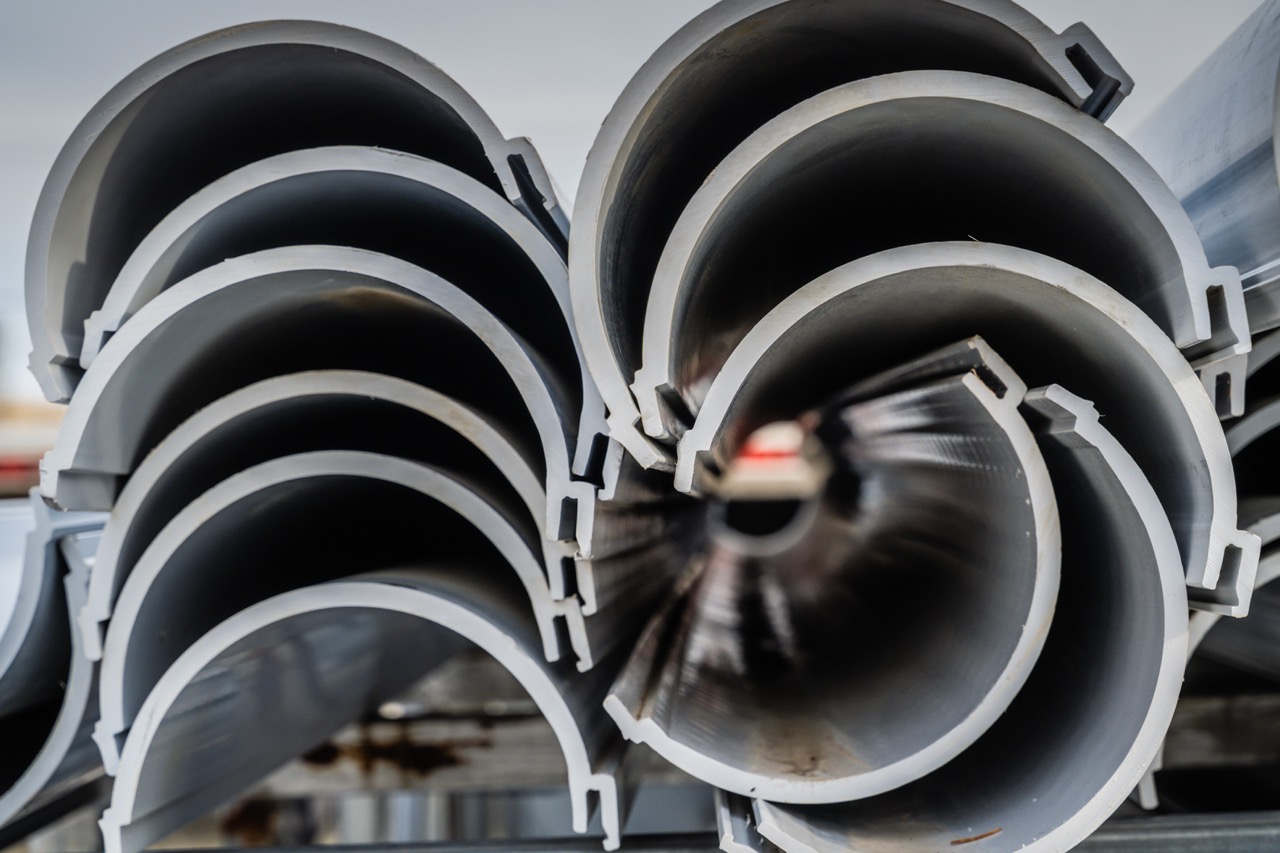

PVC split duct is a two-piece conduit that snaps together around existing cables, allowing crews to repair damaged conduit or enclose exposed cable runs without cutting and re-splicing conductors. The self-locking interlocking design creates a tight, protective seal without tape, straps, or adhesives. Galloway stocks PVC split duct from Conduit Repair Systems (CRS) and OSI Plastics.

Speak to a specialist call
Split PVC casing-IN Mar 2026-9276 Large
Reels in the Yard Greenfield OH SML

Features

Every part of the system — duct, couplings, and sweeps — closes around in-place cable, so a run can be repaired, protected, or turned at a bend without cutting, pulling, or re-splicing the conductors underneath.

  • check_circle
    check_circle

    Self-locking interlocking tongue-and-groove design

    snaps together to create a smooth, tight seal—no tape, straps, or fasteners required

  • check_circle
    check_circle

    Repair damaged conduit without cutting, pulling, or re-splicing existing cables

    eliminates the most expensive and time-consuming part of a conduit repair

  • check_circle
    check_circle

    Manufactured from UL-listed PVC compound

    with superior impact strength and ultraviolet resistance for both above-ground and below-ground applications

  • check_circle
    check_circle

    Split couplings (ETL listed to UL 651)

    connect split duct sections together and transition between split duct and standard intact conduit

  • check_circle
    check_circle

    Split 45° and 90° sweeps available

    for direction changes without disturbing the cable path

  • check_circle
    check_circle

    Standard 10’ sections produced

    in bundles and palletized for efficient jobsite delivery

  • check_circle
    check_circle

    Dimensions match standard Schedule 40 conduit

    fits over cables sized for standard I.D. without modification

  • check_circle
    check_circle

    Available in standard and custom colors

Loose Tube - OSP Backbone, Feeder & Distribution

Fujikura Ribbon Fiber Splicing kit 6-22-26-8090 Medium

Color-coded loose buffer tubes

Protect individual fibers from mechanical and environmental stress; stranded designs carry 6 to 24 tubes, central-tube designs a single tube

More information chevron_right

Single-mode OS2 (G.652.D) standard, G.657.A1 for tighter bend routing;

OFS AllWave ZWP fiber gives zero water peak across the full wavelength spectrum

Gel-free DryBlock construction (OFS)

Reduces splice prep time by up to 80% vs. gel-filled designs

Jacket and construction options span single jacket (SJ) through double-armored (DA)

Corrugated steel tape armor for direct-burial without conduit or in rodent-prone areas; OFS Fortex DT Light Armor is gel-free and mass-fusion-ready

All-dielectric ADSS variant for aerial self-support

No messenger wire, no grounding on energized power lines; aramid strength members support spans to ~1,500 m depending on loading; OFS PowerGuide DT double-jacket eliminates all gels

Fiber counts from 12 to 864

Standard reel lengths 1 km and 2 km; multimode OM3/OM4 available for campus and data center interconnect

Loose Tube - OSP Backbone, Feeder & Distribution

Fujikura Ribbon Fiber Splicing kit 6-22-26-8090 Medium

noimage-3

Color-coded loose buffer tubes

Color-coded loose buffer tubes protect individual fibers from mechanical and environmental stress; stranded designs carry 6 to 24 tubes, central-tube designs a single tube

Single-mode OS2 (G.652.D)

Single-mode OS2 (G.652.D) standard, G.657.A1 for tighter bend routing; OFS AllWave ZWP fiber gives zero water peak across the full wavelength spectrum

Gel-free DryBlock construction (OFS)

Gel-free DryBlock construction (OFS) reduces splice prep time by up to 80% vs. gel-filled designs

Jacket and construction options span single jacket (SJ)

Jacket and construction options span single jacket (SJ) through double-armored (DA): corrugated steel tape armor for direct-burial without conduit or in rodent-prone areas; OFS Fortex DT Light Armor is gel-free and mass-fusion-ready

All-dielectric ADSS

All-dielectric ADSS variant for aerial self-support---no messenger wire, no grounding on energized power lines; aramid strength members support spans to ~1,500 m depending on loading; OFS PowerGuide DT double-jacket eliminates all gels

Fiber counts from 12 to 864

Fiber counts from 12 to 864; standard reel lengths 1 km and 2 km; multimode OM3/OM4 available for campus and data center interconnect

Ribbon - High Fiber Count Backbone & Trunk

Fujikura Ribbon Fiber Splicing kit 6-22-26-8089 Medium



  • For high-density backbone and trunk, hyperscale data center interconnect, and central office / carrier-hotel cabling

  • Fiber counts from 144 to 6,912+; outside diameter is critical for duct-fill calculations

  • Standard matrix, rollable, and intermittently bonded ribbon (IBR) constructions; rollable / IBR allows higher packing density in a smaller diameter

  • 12-fiber mass-fusion splicing dramatically reduces splice time vs. single-fiber splicing

  • Single jacket, double jacket, armored, or all-dielectric construction

Flat Drop - Last-Mile FTTH

  • Flat self-supporting design for last-mile drops to home or business---aerial self-support or direct-buried final span

  • 1, 2, 4, 6, and 12-fiber counts; G.657.A2 bend-tolerant fiber typical; compatible with standard wedge clamps and closure strain reliefs

  • Toneable (copper toner) variant locates buried drops after install without digging; all-dielectric version also available

  • MDPE outdoor jacket with flame-retardant option for indoor transition; pre-connectorized (OptiTap / hardened) or bulk reel; RUS (RDUS)-listed options available

Technical Specifications

The following specifications represent our standard stocked range. Need a different size or schedule?
Give us a call. We’ll figure it out.

Specification

Standard Stocked Range

Material

Rigid PVC (UL-listed compound, YL-1050P for conduit / YL-700 for fittings)

Schedule 40 Sizes

1”, 1-1/4”, 1-1/2”, 2”, 2-1/2”, 3”, 4”, 5”, 6”

Schedule 80 Size

2”

Standards

Split conduit manufactured per NEMA TC-2 | Split couplings ETL listed to UL 651 (except 1” Sch 40 and 4” C-duct)

Standard Lengths

10’ sections

Minimum Order

10 ft. per size

Accessories

Split couplings, split adapter couplings, split 45° sweeps, split 90° sweeps, split wyes, metal strap hangers

Dimensional References

Schedule 40 wall thickness increases with conduit size to maintain structural integrity:

Size O.D. I.D. Wt./10'

1”

1.049”

1.315”

4.50 lbs

1-1/4”

1.380”

1.660”

5.50 lbs

1-1/2”

1.610”

1.900”

6.50 lbs

2”

2.067”

2.375”

8.50 lbs

2-1/2”

2.469”

2.875”

10.50 lbs

3”

3.068”

3.500”

13.00 lbs

4”

4.026”

4.500”

18.50 lbs

5”

5.047”

5.563”

24.50 lbs

6”

6.065”

6.625”

34.00 lbs

Technical Specifications

Specification Standard Stocked Range Standard Stocked Range
 Standard Stocked Range Standard Stocked Range

Material

High-Density Polyethylene (HDPE)







Available Sizes

3/4” through 6” diameter







SDR Options

SDR 7, 9, 11, 13.5, 15.5 (controlled by outside diameter and minimum wall thickness)







SIDR Options

SIDR 9, 11.5 (controlled by inside diameter and minimum wall thickness)







Schedule Options

Schedule 40 and Schedule 80







Standards Compliance

ASTM D3035, ASTM D2239, ASTM F2160







Listings

RUS Listed for telecommunications applications







Pull Tape

Available empty or with factory pre-installed pull tape (1,250 lb typical tensile strength)







Standard Colors

Orange, blue, green, black, white, red, brown, gray, terra cotta, yellow. Custom colors and stripe combinations available.







Reel Sizes

66”, 84”, 96”, 102”, 114” diameter steel reels







Conduit Markings

Permanent marking includes material type, applicable standards, production information, and sequential foot/meter markings. Custom marking available.






Eyebrow

Title would go here

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Quisque hendrerit purus ex, eget molestie quam rutrum vitae. In egestas faucibus magna, vel malesuada mi tempor a. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Quisque hendrerit purus ex, eget molestie quam rutrum vitae. In egestas faucibus magna, vel malesuada mi tempor a.

Button Text Button Text

Brands we carry

Need PVC Split Duct for Your Next Build?

We stock PVC split duct and split fittings at every Galloway location. Tell us the damaged conduit size and how many linear feet you need—and if you’re dealing with an emergency dig-up, call us directly. We’ll get material on a truck.

Whether you’re working a full build-out or just need the final pallet to finish a job, we keep your projects moving forward
