Anchors & Pole Line Hardware
Every aerial strand installation requires anchoring systems to secure guy wires, plus a full complement of pole line hardware for attachment, suspension, grounding, and cable management. From the screw anchors that hold guy wires in the ground to the lashing clamps that terminate wire at each pole, Galloway stocks the complete hardware package for aerial telecom and utility construction. Primary manufacturers include MacLean Power Systems and Allied Bolt.

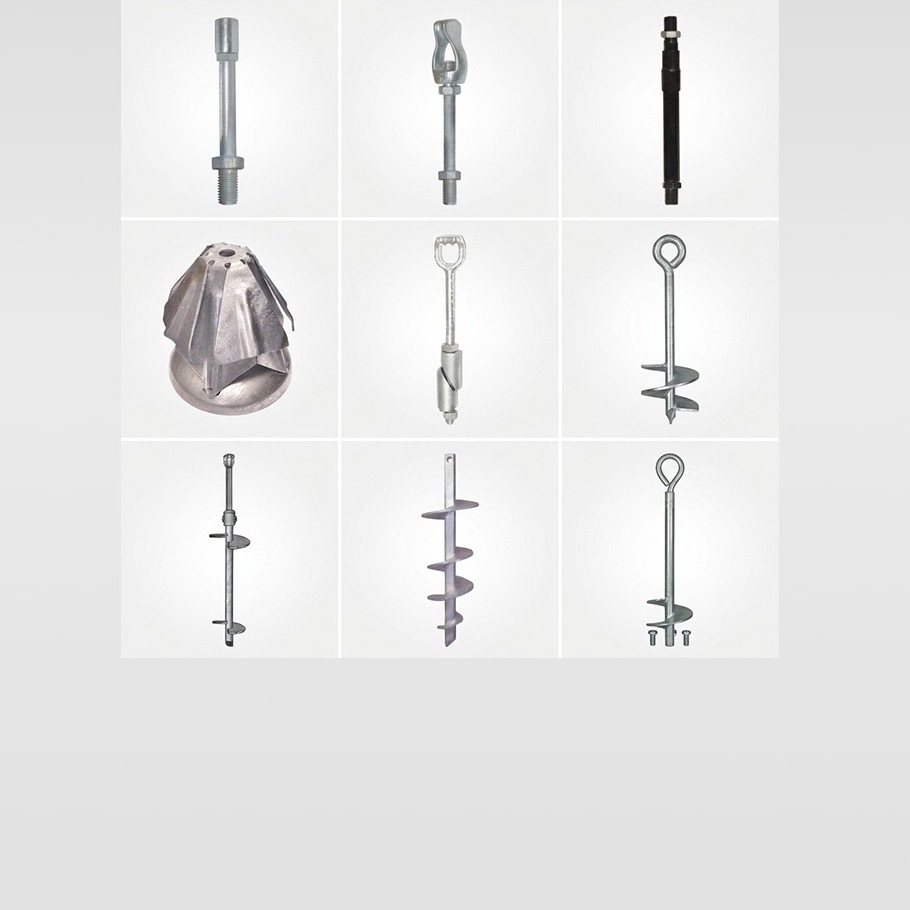

No-Wrench Screw Anchors
-
One-piece forged eye anchor rod with integral welded helix and angle-cut tip
-
Installed by turning into ground by hand or with conventional power equipment—no augering required
-
Eye dimensions match standard anchor rods for universal guy wire attachment
-
Hot-dip galvanized to ASTM A123
-
Available in 4" through 15" helix diameters; rod sizes 3/4" to 1-1/4", lengths 54" to 96"
Guying Hardware
-
Guy grip dead-ends—preformed wire grips for terminating guy strand at pole and anchor attachment points
-
False dead-ends for intermediate attachment where strand must pass through without termination
-
Guy hooks (Ram's Head)—for attaching guy wire to the anchor rod eye at ground level
-
Guy guards—8 ft yellow guards for marking and protecting guy wires at pedestrian level
-
Strand splices for joining strand sections in long runs

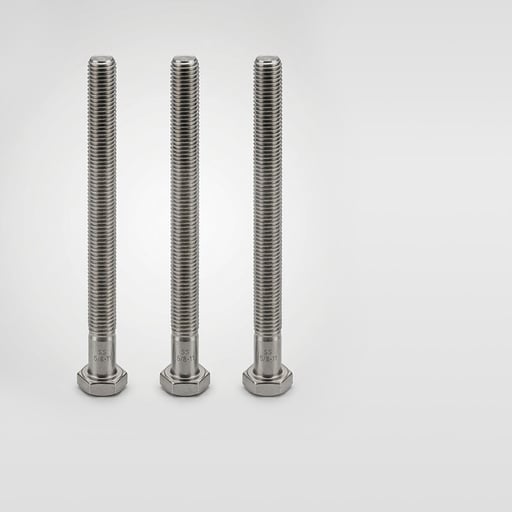

Fasteners
-
5/8" machine bolts in 10", 12", 14", 16", 18", and 20" lengths—hot-dip galvanized, REA listed
-
5/8" straight double arming (D.A.) bolts in 10" through 20" lengths
-
5/8" square nuts and square washers
-
Threaded eye nuts for strand attachment
-
Strand splices for joining strand sections in long runs
Cable Attachment & Support
-
3-bolt suspension clamps with flat keeper for strand-to-pole attachment
-
2-piece "D" lashing wire clamps—galvanized steel jaws rated over 50,000 PSI tensile, fits strand 1/4" to 7/16"
-
Cable support straps in 10" and 16" lengths for securing cables to strand
-
1/2" plastic spacers for maintaining cable-to-strand separation
-
Crossover clamps for strand and cable intersection points
-
Snowshoes with brackets and ties for cable storage loops at poles
-
ABstrap lashing strap system (Allied Bolt)—acetal polymer straps as a metal-free alternative at splice cases, expansion loops, and cable storage locations
-
Stainless steel lashing clamp option available for corrosive environments

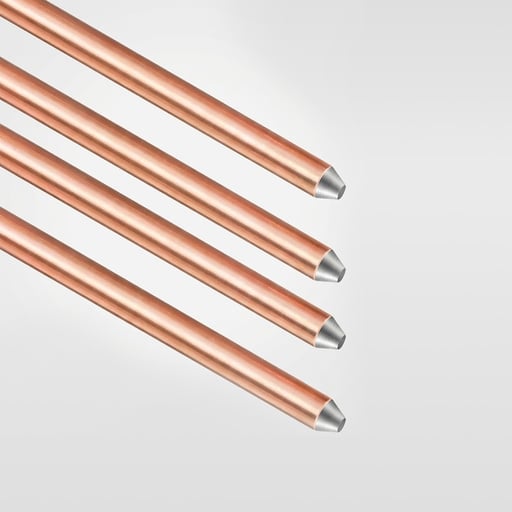

Grounding & Protection
-
5/8" x 8' copper ground rods with ground rod clamps
-
6 gauge copper bare wire for bonding and grounding connections
-
Universal bonding clamps for strand-to-ground connections
-
Copper coated staples and galvanized staples for securing ground wire to poles
-
Ground wire moulding for protecting exposed ground conductor runs
-
Steel riser guard and cap riser for protecting cable transitions from aerial to underground
-
Tree guards for protecting strand and cable where vegetation contact is possible
-
Fiber tags for identification and labeling
You may also need
Galvanized Steel Strand
3-, 7-, and 19-wire guy and messenger strand — what the anchors, dead-ends, and suspension clamps terminate, tension, and support.
Fiber Optic Cable
Loose tube OSP backbone, ribbon, flat and round drop, and air-blown microduct cable — the fiber your conduit pathway carries.

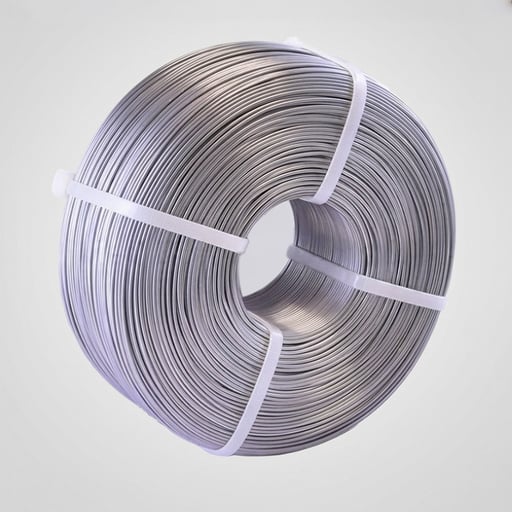

Stainless Steel Lashing Wire
Type 430, 302, and 316 lashing wire — the consumable that pairs with the "D" lashing clamps and cable support straps on this page.
Brands we carry
Need Aerial Hardware for Your Next Build?
Galloway stocks the complete aerial hardware package across our distribution network — anchors, bolts, clamps, dead-ends, grounding, and cable attachment hardware. Whether you have defined specifications or need assistance selecting the right hardware for your aerial construction, our team can help ensure the right products are specified and delivered.
Whether you’re working a full build-out or just need the final pallet to finish a job, we keep your projects moving forward.
