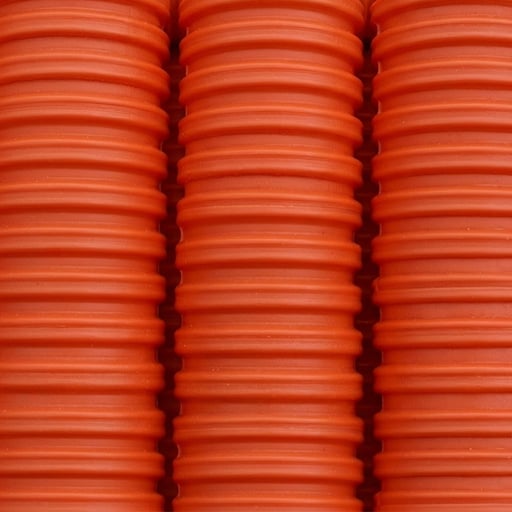

HDPE Corrugated Conduit
HDPE corrugated conduit is commonly used in installations where space is limited or existing pathways must be utilized—such as innerduct runs inside occupied conduit, manholes, and congested duct banks. Its lightweight, flexible design and corrugated wall profile provide excellent crush resistance while allowing for easier handling and installation in confined environments. Galloway stocks HDPE corrugated conduit across a range of sizes and configurations to support these applications.
Features
Corrugated conduit is designed for installations where flexibility, reduced friction, and ease of handling in confined spaces are critical
-
check_circlecheck_circle
Corrugated wall design
Provides high crush resistance at a fraction of the weight of smoothwall conduit
-
check_circlecheck_circle
Highly flexible with minimal memory
Installs smoothly inside existing conduit without spiraling, reducing friction during cable pulls
-
check_circlecheck_circle
Corrugated interior
Reduces surface contact, lowering friction during cable installation
-
check_circlecheck_circle
Easier to handle and route
Important in confined environments such as manholes, handholes, and congested duct banks
-
check_circlecheck_circle
Protects cables
Avoiding damage from shifting ground, rock, and root intrusion over the life of the installation
-
check_circlecheck_circle
Permanent pathway
Providing for future cable access, upgrades, and replacement
-
check_circlecheck_circle
Factory pre-installed pull tape
Standard on 2”; available on 1” through 1 1/2” sizes
-
check_circlecheck_circle
Brittleness temperature rated
-60°C for reliable cold-weather installation
Technical Specifications
| Specification | Standard Stocked Range |
|---|---|
|
Material |
High-Density Polyethylene (HDPE) |
|
Available Sizes |
1”, 1 1/4”, 1 1/2”, 2” |
|
Standards Compliance |
ASTM D3350 |
|
Bend Radius |
All sizes meet UL 2024 4” bend radius standard |
|
Brittleness Temperature |
-60°C across all sizes |
|
Pull Tape |
Factory pre-installed pull tape standard on 2”; available 500 lb–6,000 lb tensile strength or locatable |
|
Standard Colors |
Blue, green, black, orange, white, red, and more. Custom colors available. |
|
Conduit Markings |
Permanent marking includes material type, applicable standards, production information, and sequential foot/meter markings. Custom marking available. |
Technical Specifications
| Specification | Standard Stocked Range | Standard Stocked Range |
Standard Stocked Range | Standard Stocked Range |
|---|---|---|---|---|
|
Material |
High-Density Polyethylene (HDPE) |
|
|
|
|
Available Sizes |
3/4” through 6” diameter |
|
|
|
|
SDR Options |
SDR 7, 9, 11, 13.5, 15.5 (controlled by outside diameter and minimum wall thickness) |
|
|
|
|
SIDR Options |
SIDR 9, 11.5 (controlled by inside diameter and minimum wall thickness) |
|
|
|
|
Schedule Options |
Schedule 40 and Schedule 80 |
|
|
|
|
Standards Compliance |
ASTM D3035, ASTM D2239, ASTM F2160 |
|
|
|
|
Listings |
RUS Listed for telecommunications applications |
|
|
|
|
Pull Tape |
Available empty or with factory pre-installed pull tape (1,250 lb typical tensile strength) |
|
|
|
|
Standard Colors |
Orange, blue, green, black, white, red, brown, gray, terra cotta, yellow. Custom colors and stripe combinations available. |
|
|
|
|
Reel Sizes |
66”, 84”, 96”, 102”, 114” diameter steel reels |
|
|
|
|
Conduit Markings |
Permanent marking includes material type, applicable standards, production information, and sequential foot/meter markings. Custom marking available. |
|
|
|
