Aerial Infrastructure

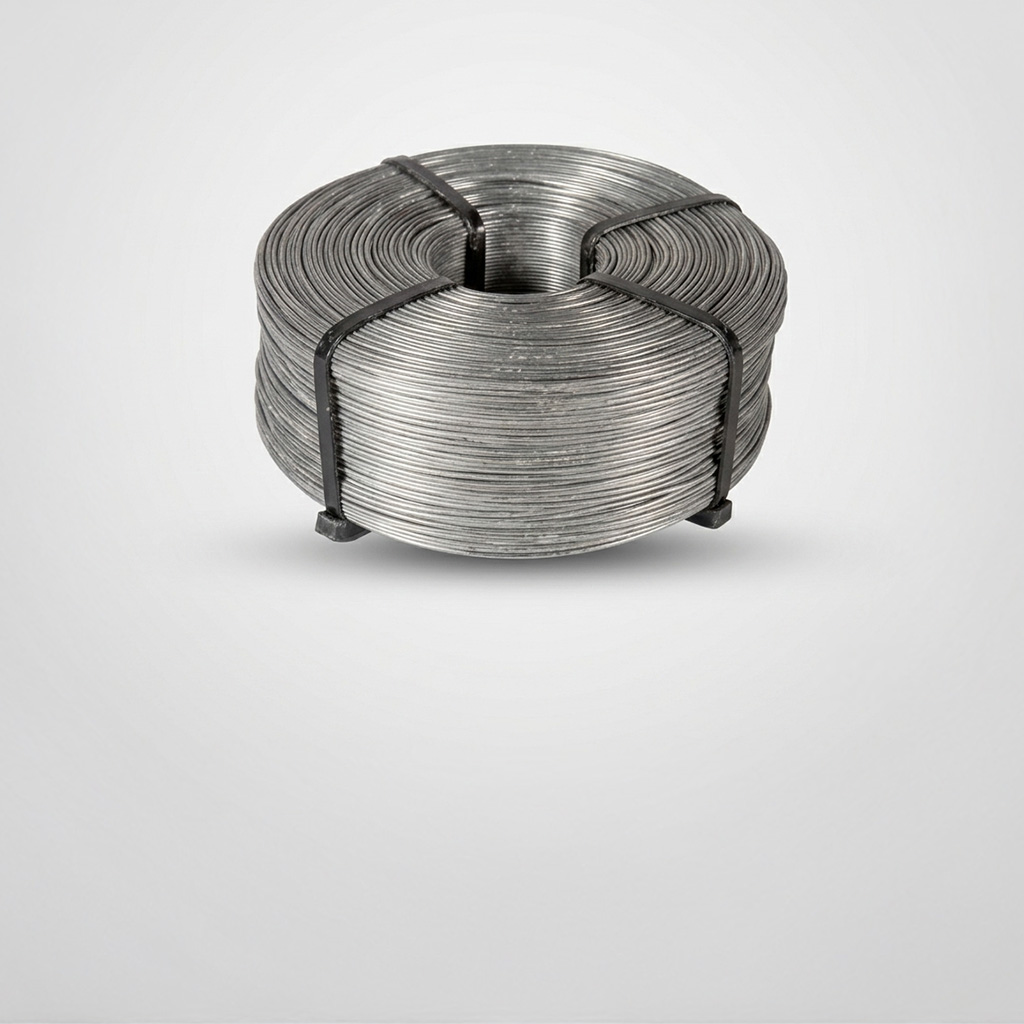

Stainless Steel Lashing Wire

Stainless steel lashing wire for securing aerial fiber, copper, and coax to the messenger strand — available in Types 430, 302, and 316.

Stainless steel lashing wire is used in a cable lasher to secure aerial fiber optic, copper, and coaxial cables to the supporting messenger strand between utility poles. A specially controlled annealing process produces a uniform, fine-grain structure throughout the wire for consistent bending and wrapping performance in the field.

Speak to a specialist call
Galloway_Aerial_Stainless_Steel_Lashing_Wire_S
Reels in the Yard Greenfield OH SML

Features

Available in Type 430, 302, and 316 stainless steel alloys—each offering different levels of corrosion resistance for different environmental conditions. Galloway stocks lashing wire from Allied Bolt and other manufacturers in the types and diameters your aerial builds require.

For further information
  • check_circle
    check_circle

    Controlled annealing

    For uniform grain structure and smooth, consistent wrapping in C and J2 series lashers

  • check_circle
    check_circle

    Available in .038" and .045" diameters

    .038" Type 302 provides equivalent strength to .045" Type 430 with better ductility

  • check_circle
    check_circle

    Standard coil lengths of 1,200 ft (.045" dia.) and 1,600 ft (.038" dia.)

    Packaged 6 coils per carton

  • check_circle
    check_circle

    Wound in straight hub configuration

    Compatible with all standard GMP-style lashing machines

  • check_circle
    check_circle

    Three alloy types for different corrosion environments

    From general inland use (430) to severe coastal/industrial (316)

  • check_circle
    check_circle

    Manufactured in the USA

    All lashing wire manufactured in the USA and certified upon request

Technical Specifications

  Type 430 (S43000) Type 302 (S30200) Type 316 (S31600)
Alloy Ferritic — 16–18% Cr, no Ni/Mo Austenitic — 18–20% Cr, 8% Ni Austenitic — 18% Cr, 10% Ni, 2.5% Mo
Magnetic Yes (ferritic) No (austenitic) No (austenitic)
Diameters 0.045" 0.038" and 0.045" 0.038" and 0.045"
Break Load (0.045") ~125 lbs ~165 lbs ~165 lbs
Coil Length 1,200 ft 1,200 ft (0.045") / 1,600 ft (0.038") 1,200 ft (0.045") / 1,600 ft (0.038")
Corrosion General use only. Not within 25 mi of salt water or industrial pollutants. Excellent in industrial atmospheres. Good middle ground. Best resistance. Handles chlorides, sulfides, coastal salt spray.
Best For Inland, non-corrosive areas Industrial areas, moderate corrosion Coastal, salt spray, severe corrosion
Relative Cost Lowest Mid-range Highest

Technical Specifications

Specification Standard Stocked Range Standard Stocked Range
 Standard Stocked Range Standard Stocked Range

Material

High-Density Polyethylene (HDPE)







Available Sizes

3/4” through 6” diameter







SDR Options

SDR 7, 9, 11, 13.5, 15.5 (controlled by outside diameter and minimum wall thickness)







SIDR Options

SIDR 9, 11.5 (controlled by inside diameter and minimum wall thickness)







Schedule Options

Schedule 40 and Schedule 80







Standards Compliance

ASTM D3035, ASTM D2239, ASTM F2160







Listings

RUS Listed for telecommunications applications







Pull Tape

Available empty or with factory pre-installed pull tape (1,250 lb typical tensile strength)







Standard Colors

Orange, blue, green, black, white, red, brown, gray, terra cotta, yellow. Custom colors and stripe combinations available.







Reel Sizes

66”, 84”, 96”, 102”, 114” diameter steel reels







Conduit Markings

Permanent marking includes material type, applicable standards, production information, and sequential foot/meter markings. Custom marking available.







Estimating Lashing Wire

When estimating the length of lashing wire needed for a cable run, add the following to the measured span length for single lashing:

  • bookmark_check
    Cables up to 1-1/2" diameter: add 5% to span length
  • bookmark_check
    Cables 1-1/2" to 3" diameter: add 10% to span length
  • bookmark_check
    Cables over 3" diameter: add 20% to span length
Galloway_Aerial_Stainless_Steel_Lashing_Wire_Alt2

Brands we carry

Need Lashing Wire for Your Aerial Build?

Galloway stocks stainless steel lashing wire across our distribution network in Types 430, 302, and 316. Whether you have defined specifications or need assistance selecting the right alloy grade for your installation environment, our team can help ensure the right product is specified and delivered.
